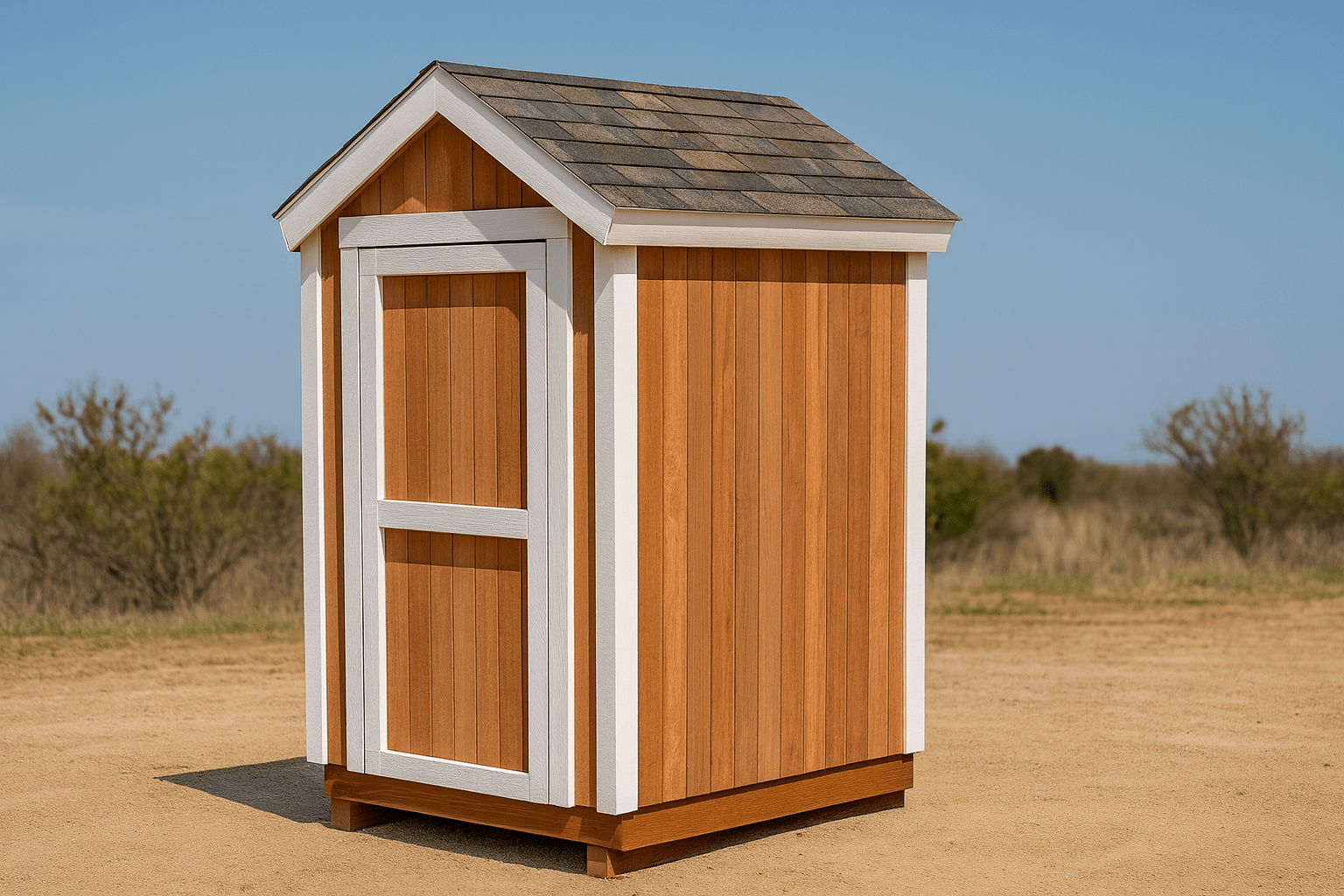

This step by step diy woodworking project is about 5×5 gable shed plans. I have designed this small gable shed with a front door, so you can store your garden tools with a minimum expense. If you like gardening and you have a few tools you want to protect from bad weather, this shed is the right choice. Remember that you need to read the local building codes before starting the construction, so you comply with the legal requirements. See my other shed plans HERE.

We recommend you to invest in the best materials you could afford. Therefore, you should buy weather-resistant lumber, such as pine or cedar. Always take accurate measurements before adjusting the size of the components at the proper size. Drill pilot holes trough the components before inserting the wood screws, to prevent the wood from splitting. See all my Premium Plans HERE.

Made from this plan

5×5 Gable Shed – Free DIY Plans

Building a 5×5 gable shed

Materials

• A – 2 pieces of 4×4 lumber – 60″ long SKIDS
• B – 2 pieces of 2×6 lumber – 60″ long, 5 pieces – 57″ long FLOOR FRAME
• C – 1 piece of 3/4″ plywood – 48″x60″ long, 1 piece – 12″x60″ long FLOOR
• D – 2 pieces of 2×4 lumber – 60″ long, 1 piece – 53″ long, 7 pieces – 73 1/2″” long 2xSIDE WALL
• E – 2 piece of 2×4 lumber – 8 1/2″ long, 1 piece – 53″ long, 1 piece – 60″ long, 4 pieces – 73 1/2″ long FRONT WALL
• F – 2 pieces of 2×4 lumber – 53″ long, 1 piece – 60″ long, 5 pieces – 73 1/2″ long BACK WALL
• G – 2 pieces of T1-11 5/8″ siding – 48″x78 3/4″ long, 2 pieces – 12″x78 3/4″ long SIDING

• 1 piece of 4×4 lumber – 10′
• 4 pieces of 2×6 lumber – 10′
• 2 pieces of 3/4″ plywood – 48″x96″
• 23 pieces of 2×4 lumber – 8′
• 6 pieces of 2×4 lumber – 10′
• 3 pieces of T1-11 5/8″ siding – 4’x8′
• 2 1/2″ screws, 3 1/2″ screws, 1 5/8″ screws
• 4d nails, 16d nails, 6d nails
• skid ties
• joist hanger
• structural nails for ties
• wood filler , wood glue, stain/paint

Tools

• Safety gloves, glasses
• Miter saw, jigsaw
• Chalk line, tape measure, spirit level, carpentry pencil
• Drill machinery and drill bits

Time

• One Week

How to build a 5×5 gable shed

Floor frame

The first step of the project is to build the frame for the 5×5 storage shed. As you can easily notice in the diagram, you need to cut the components at the right dimensions. Use a saw to cut the components from 2×4 lumber. Align the edges with attention and make sure the corners are square. Drill pilot holes through the rim joists and insert 3 1/2″ screws into the perpendicular components.

Fitting the skids

Fit the 4×4 skids under the floor frame. Align the skids with attention and use screws to lock the frame to the skids. The skids will lift the frame from the ground and therefore, they will protect it from moisture.

Fitting the floor sheets

Fit 3/4″ plywood sheets to the floor frame. Align the edges flush and insert 1 5/8″ screws, every 8″ along the frame. Leave no gaps between the components.

Side wall frames

Building the side wall frames is a straight forward process, as you need to cut all the components at the right dimensions and then lock them together tightly with 3 1/2″ screws. Place the studs every 16″ on center and check if the corners are square. Place double studs at both ends of the components for a professional result.

Front wall frame

Next, you need to build the front wall frame. Cut all the components from 2×4 lumber, as shown in the diagram. Drill pilot holes through the plates and insert 3 1/2″ screws into the studs. Place the studs equally spaced. You can adjust the size of the door opening to suit your needs.

Back wall frame

Next, build the back wall for the square storage shed. Cut the components at the dimensions shown in the diagram and then use the same techniques described above to assemble the wall together tightly.

Assembling the shed frame

Fit the wall frames to the floor of the shed. Align the edges with attention and plumb the wall frames with a spirit level. Drill pilot holes through the bottom plates and insert 3 1/2″ screws. In addition, you need to lock the adjacent wall together tightly with 2 1/2″ screws. Make sure the corners are square and align the edges with attention.

Side wall sheets

Fit the T1-11 siding panels to the sides of the shed. Align the edges with attention and leave no gaps between the sheets. Make cuts so you can fit the panels around the door opening. Insert 6-8d nails every 8″ along the framing.

How to build a 5×5 shed with a gable roof

This is a small storage shed, making it ideal for a small backyard. Don’t forget to take a look over PART 2 and PART 3 of the project so you learn how to build the roof and the front door for the storage shed. If you like my project, don’t forget to SHARE it on Facebook and Pinterest.

If you want to download the plans. just click on the GET PDF PLANS button bellow.

Thank you for reading our project about 5×5 diy shed plans and I recommend you to check out the rest of the projects. Don’t forget to LIKE and SHARE our projects with your friends, by using the social media widgets. SUBSCRIBE to be the first that gets our latest projects.
