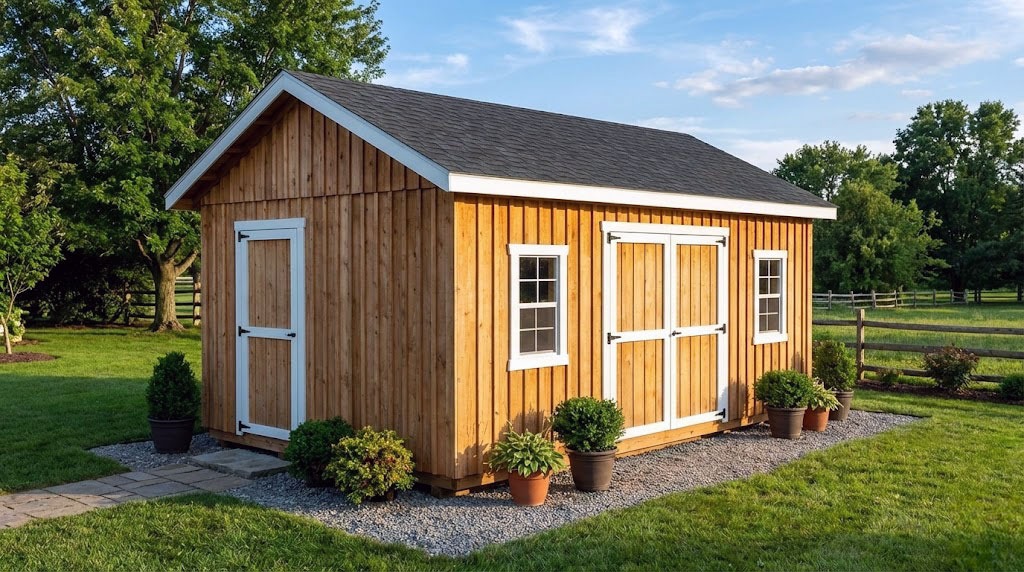

12×24 Shed Plans – Free DIY Plans

This step by step woodworking project is about free 12×24 garden shed plans. If you are in need for a backyard workshop or for a large shed where you can store tools and furniture, I’ve got you covered with step by step 3D diagrams and instructions. PDF Download and Print friendly. The free DIY plans come with a full cut / shopping list. Make sure you read the local building codes, so you comply with the legal requirements. See my other DIY projects HERE.

We recommend you to invest in the best materials you could afford. Therefore, you should buy weather-resistant lumber, such as pine or cedar. Always take accurate measurements before adjusting the size of the components at the proper size. Drill pilot holes trough the components before inserting the wood screws, to prevent the wood from splitting. See all my Premium Plans HERE.

Made from this plan

12×24 Shed Plans – Free DIY Plans

Building a 12×24 gable shed

Materials

• A – 10 pieces of 4×4 lumber – 144″ long SKIDS
• B – 2 pieces of 2×6 lumber – 288″ long, 19 pieces – 141″long FLOOR FRAME
• C – 7 pieces of 3/4″ plywood – 48″x96″ long, 4 pieces – 48″x48″ long FLOOR
• D – 2 pieces of 2×4 lumber – 96″ long, 1 piece – 288″ long, 1 piece – 281″ long, 18 pieces – 91 1/2″ long, 2 pieces – 78 1/2″ long, 6 pieces – 19 1/2″ long, 6 pieces – 29″ long, 4 pieces – 36″ long, 8 pieces – 27″ long ,7 pieces – 7 1/2″ long, 2 pieces of 2×6 lumber – 99″ long FRONT WALL
• E – 2 pieces of 2×4 lumber – 288″ long, 1 piece – 281″ long, 21 pieces – 91 1/2″ long BACK WALL
• F – 1 piece of 2×4 lumber – 144″ long, 1 piece – 137″ long, 1 piece – 20 1/2″ long, 1 piece – 80 1/2″ long, 9 pieces – 91 1/2″ long, 2 pieces – 78 1/2″ long, 4 pieces – 7 1/2″ long2 pieces of 2×6 lumber – 39″ long SIDE WALL
• G – 2 pieces of 2×4 lumber – 137″ long, 1 piece – 144″ long, 10 pieces – 91 1/2″ long SIDE WALL
• H – 10 pieces of T1-11 siding – 48″x96″ long, 2 pieces – 16″x48″ long SIDING

• 10 pieces of 4×4 pressure treated lumber – 12 ft
• 2 pieces of 2×6 pressure treated lumber – 24 ft
• 19 pieces of 2×6 pressure treated lumber – 12 ft
• 9 pieces of 3/4″ pressure treated – 4’x8′
• 5 pieces of 2×4 lumber – 24 ft
• 5 pieces of 2×4 lumber – 12 ft
• 2 pieces of 2×6 lumber – 10 ft
• 1 piece of 2×6 lumber – 8 ft
• 75 pieces of 2×4 lumber – 8 ft
• 11 pieces of T1-11 siding – 4’x8′
• 1 5/8″ screws, 2 1/2″ screws, 3 1/2″ screws
• wood filler , wood glue, stain/paint
• joist hanger
• rafter ties
• structural nails for ties

Tools

• Safety gloves, glasses
• Miter saw, jigsaw
• Chalk line, tape measure, spirit level, carpentry pencil
• Drill machinery and drill bits

Time

• One Day

How to build a 12×24 shed

Floor frame – large shed

The first step of the project is to frame the floor for the 12×24 shed. Cut the joists from 2×6 lumber. Drill pilot holes through the rim joists and insert 3 1/2″ screws into the perpendicular components. Make sure the corners are square and align the edges flush. Measure the diagonals of the floor and make adjustments until they are perfectly equal. You can also use hangers to secure the joists into place.

Skids – 12×24 shed

Lay 4×4 skids on a level surface and then attach the floor frame. Make sure you place the skids equally spaced, so they can support the weight of the structure properly. Use rafter ties to lock the skids to the floor frame. In addition, drill pilot holes through the joists and insert 3 1/2″ screws into the skids.

Select the location for the shed and then remove the vegetation layer. Spread 2-3″ of gravel under the floor of the shed, so you can protect the components from moisture. I recommend you to use pressure treated lumber for the floor frame and for the plywood sheets.

Floor sheets – large shed

Attach the 3/4′ plywood sheets to the floor frame. Align the edges with attention, drill pilot holes and insert 1 5/8″ screws every 8″ along the joists. Leave no gaps between the sheets for a professional result.

Front wall frame – 12×24 shed

Assemble the front wall for the shed from 2×4 lumber. Make sure you use 2×6 lumber for the double header above the doors. Use 2×4 lumber for the double headers above and under the windows. After cutting all the components at the right dimensions, you need to assemble them together tightly. Drill pilot holes through the plates and insert 3 1/2″ screws into the studs.  The studs are placed every 16″ on center.

You can adjust the size of the double door opening to suit your needs. In addition, you can make the necessarily modifications for fitting a garage door. The rough opening for the doors is 96″x80″. You can fit 2 ft x 3 ft windows to the openings, but in case you already have them and they have other dimensions, it is easy to make adjustments to the plans.

Double headers

Building the double headers is a straight forward job. Since the actual thickness of 2x6s is 1 1/2″, we need to fit a piece of 1/2″ plywood between the beams, so we get a added thickness of 3 1/2″ long. Drill pilot holes through the beams and insert 2 1/2″ screws. Add glue to the joints and add a 1/2″ plywood piece for strength.

Back wall frame – 12×24 gable shed

Frame the opposite wall using the same techniques described above. Assemble the frame on a level surface, such as the floor of the shed. Make sure you lock all the joints tightly together. Align the edges and place the studs every 16″ OC.

Side wall frame – 12×24 storage shed

Last but not least, you need to assemble the side walls. We will start with the plain side wall. Just use the carpentry techniques described above to assemble the frame.

Side wall with door – 12×24 shed

For the other side wall, you need to create an opening for a man door. The rough opening is 36″x80″, so you can install a standard door, as well. Notice the instructions from the 3D diagram, so you can space the studs properly and so you can cut all the components at the right dimensions.

Fitting the front and back wall frames

Place the front and back walls to the floor of the large shed. Align the edges flush and plumb the with a spirit level. Use temporary braces to lock the wall frames to the floor of the shed. Drill pilot holes through the bottom plates and insert 3 1/2″ screws into the shed floor.

Assembling the shed frame – 12×24 shed

Fit the side wall frames to the floor of the shed. Align the edges flush, drill pilot holes through the bottom plates and insert 3 1/2″ screws into the floor. Make sure you lock the adjacent walls together tightly. Drill pilot holes and insert 2 1/2″ screws to lock everything together tightly.

Fitting the siding sheets

Back wall panels – 12×24 shed

Attach the T1-11 siding sheets to the back wall frames of the shed. Align the edges with attention and use 6-8d nails, every 8″, to lock them into place tightly. Leave no gaps between the sheets for a professional result.

Front wall panels – 12×24 shed

Attach the T1-11 siding to the front wall of the large shed. Make a few cuts around the door opening and around the window openings. Smooth the edges with sandpaper, before locking them into place with 6-8d nails. Insert the nails every 8″ along the framing.

How to build a 12×24 garden shed

Check out PART 2 of the project to learn how to build the gable roof and the doors for this 12×24 backyard shed. You can easily use this shed as a workshop or for storing your bikes and other motorized toys.

12×24 Shed Plans

This outdoor shed features a gable roof, double front doors to the front and a side door for easy access inside. You can easily frame a ramp so you can shelter inside larger objects. I have a full tutorial on how to build a shed ramp, as well. You can adjust the size of the windows to suit your needs, if you need more or less light inside the structure structure.

12×24 Shed Plans – side view

If you want to build the gable roof for this large storage shed, as well as the shed doors, you should check out PART 2 of the project. If you like my project, don’t forget to SHARE it on Facebook and Pinterest. If you are already here, you might as well take a look over my 12×20 gable shed plans.

12×24 Shed Plans – dimensions

12×24 gable shed

If you want to download the plans. just click on the GET PDF PLANS button bellow. If you want to get the free version, just read the blog FAQs.

Thank you for reading our project about free 12×24 garden shed plans and I recommend you to check out the rest of the projects. Don’t forget to LIKE and SHARE our projects with your friends, by using the social media widgets. SUBSCRIBE to be the first that gets our latest projects.
