Garden chair plans

by Jack Sander
0 comments 192 views 5 minutes read



This step by step diy woodworking project is about garden chair plans. If you want to build a nice wooden chair for your garden, we recommend you to take a look over the diagrams and instructions shown in the article. There are many outdoor furniture plans on our website, so make sure you take a look over the rest of the options.

Before starting the actual construction project, we recommend you to plan everything, as to save money and to keep the costs under control. Adjust the size and the design of the garden chair to suit your needs. In addition, we recommend you to invest in high-quality materials, such as pine, redwood or cedar, as they have a nice finish and are highly durable, especially in a humid environment.

It is essential to invest in high quality materials, that are also water-resistant, such as pressure-treated lumber. Cut the components at the right size by using a circular saw and smooth the cut edges with a sand block. Don’t forget to ask a skilled friend to assist you during the project, especially if you don’t have a large expertise in the field. You need someone to hold the components into place, while you drive the screws in.



Made from this plan

Add-Image



Garden chair plans

Building a garden chair

Building a garden chair



Materials

  • A – 2 pieces of 2×6 lumber – 17″ long FRONT LEGS
  • B – 2 pieces of 2×12 lumber – 34 3/4″ long BACK LEGS
  • C – 4 pieces of 2×4 lumber – 22 1/2″ long SUPPORTS
  • D – 4 pieces of 2×4 lumber – 27″ long SUPPORTS
  • E – 2 piece of 2×6 lumber – 28″ long, 1 piece of 2×4 lumber – 28″ long SEAT
  • F – 1 piece of 2×4 lumber – 28″ long, 1 piece of 2×6 lumber – 28″ long BACKREST
  • G – 1 piece of 2×4 lumber – 22 1/2″ long, 1 piece of 2×2 lumber – 15″ long SUPPORTS

  • 2 pieces of 2×6 lumber – 8 ft
  • 1 piece of 2×12 lumber – 12 ft
  • 3 pieces of 2×4 lumber – 8 ft
  • 1 piece of 2×2 lumber – 2 ft
  • 2 1/2″ screws
  • filler, glue, stain

Tools

  • Safety gloves, glasses
  • Miter saw, jigsaw
  • Chalk line, tape measure, spirit level, carpentry pencil
  • Drill machinery and drill bits

Tips

  • Use a good miter saw to make the angle cuts
  • Drill pilot holes before inserting the screws

Time

  • One Week

Related





How to build a garden chair

Building the back leg

Building the back leg



The first step of the woodworking project is to build the back leg of the garden chair. As you can easily notice in the diagram, you need to mark the cut lines on the 2×12 slat and get the job done with a circular saw. Smooth the edges with fine grit sandpaper and remove the residues with a damp cloth.



Assembling the sides of the chair

Assembling the sides of the chair



Next, you need to build the front legs, out of 2×6 lumber. Cut the component at the right size and smooth the edges thoroughly. Next, you have to lock the legs together by fitting the diagonal brace.



Fitting the diagonal braces

Fitting the diagonal braces



Build the diagonal brace out of 2×4 lumber. Mark the cut lines with great care and make sure the angle cuts are accurate, otherwise the components wont fit into place. Install braces on both sides of the legs, if you want to get a professional result. Drill pilot holes through the braces and through the legs and lock them together using 5″ carriage bolts.



Fitting the top braces

Fitting the top braces



Afterwards, install the top braces to the sides of the garden chair. Cut the braces at the right size and fit them to the top of the structure. Drill pilot holes through the components and lock them together with 5″ carriage bolts. Check if the top braces are perfectly horizontal before inserting the bolts, in order to get a rigid structure.



Installing the back support

Installing the back support



Lock the two sides of the chair together by installing the 2×4 brace to the back of the structure. Drill pilot holes through the brace and insert 2 1/2″ screws into the sides. Make sure the corners are right-angled and leave no gaps between the components.



Fitting the support

Fitting the support



Install a 2×2 support to the bottom of the chair, in order to enhance the rigidity of the structure. Drill pocket holes at both ends and secure them to the sides using 2 1/2″ screws.



Fitting the seat slats

Fitting the seat slats



Next, build the seat of the garden chair. In order to get a professional result, you need to fit two 2×6 slats and one 2×4 slat to the frame of the chair. Place the slats equally-spaced and secure them to the supports using 2 1/2″ screws. Pre-drill the slats before inserting the screws, to prevent the wood from splitting.



Attaching the backrest slats

Attaching the backrest slats



Fit the slats to the backrest, as described in the diagram. Center the slats to the supports in order to get a professional result. Drill pilot holes through the slats and insert 2 1/2″ screws.

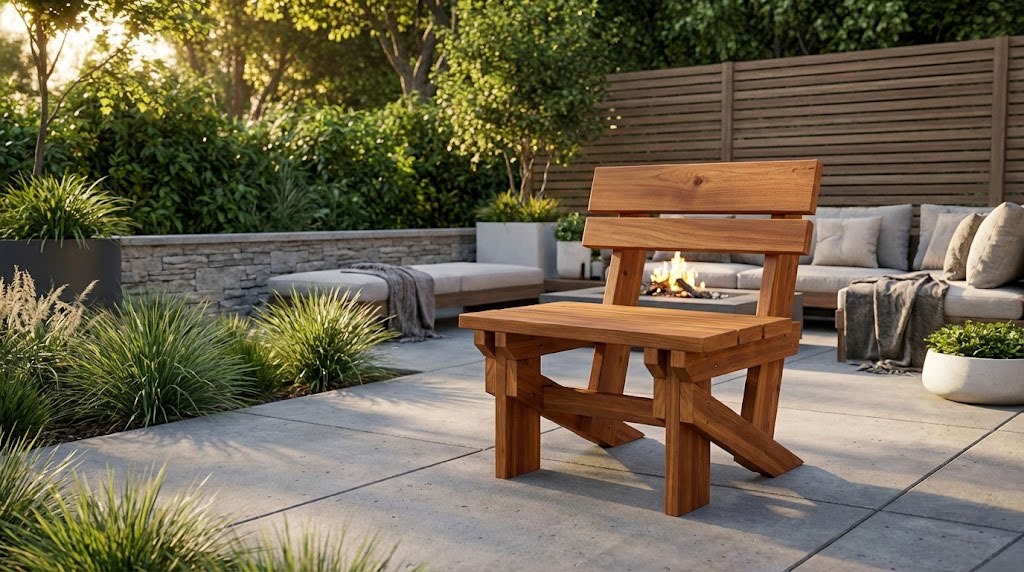

Garden chair plans

Garden chair plans



Last but not least, we recommend you to take care of the finishing touches. Fill the holes with wood filler and let it to dry out for several hours. Check out the rest of the animal projects, to see more ways to improve the look of your garden.

Smart Tip: Apply several coats of stain or paint to the wooden components, if you want to protect them from decay and to enhance the look of the garden chair house.





Thank you for reading our project about garden chair plans and we recommend you to check out the rest of the projects. Don’t forget to share our projects with your friends and LIKE us, by using the social media widgets. SUBSCRIBE if you want to be the first that gets our latest articles.
