Free Skate Ramp Plans

by Jack Sander
0 comments 366 views 4 minutes read



This step by step woodworking project is about skate ramp plans. If you are a skater and you have some space at your disposal, make sure you check out this super simple project. You can adjust the size of the ramp to suit your needs and budget. My plans come with step by step instructions and you can easily adjust all the dimensions to suit your needs. See my other DIY projects HERE.

We recommend you to invest in the best materials you could afford. Therefore, you should buy weather-resistant lumber, such as pine or cedar. Always take accurate measurements before adjusting the size of the components at the proper size. Drill pilot holes trough the components before inserting the wood screws, to prevent the wood from splitting. See all my Premium Plans in the Shop.





Made from this plan

Add-Image





Free Skate Ramp Plans

building-a-skate-ramp

Building-a-skate-ramp



Materials

  • A – 2 pieces of 3/4″ plywood – 18″x72″ long SIDES
  • B – 12 pieces of 1×4 lumber – 46 1/2″ long SUPPORTS
  • C – 1 piece of 3/4″ plywood – 18″x48″ long BACK
  • D – 1 pieces of 3/4″ plywood – 48″x74 1/4″ long TOP

  • 6 piece of 1×4 lumber – 8′
  • 2 pieces of 3/4″ plywood – 4’x8′
  • 1 1/4″ screws, 1 1/4″ pocket screws
  • stain, glue, putty

Tools

  • Safety gloves, glasses
  • Miter saw, jigsaw
  • Chalk line, tape measure, spirit level, carpentry pencil
  • Drill machinery and drill bits

Time

  • One Day





How to build a skate ramp

building-the-sides

Building-the-sides

The first step of the project is to build the sides for the skate ramp. Mark the cut lines on the 3/4″ plywood and then get the job done with a circular saw. Smooth the edges with sandpaper for a neat result.

building-the-back-of-the-ramp

Building-the-back-of-the-ramp

Build the back of the skate ramp from 3/4″ plywood. Attach 1×4 slats to the interior of the panel. Add glue to the joints, drill pilot holes and insert 1 1/4″ screws. Align the components with attention for a professional result.

assembling-the-ramp

Assembling-the-ramp

Attach the sides to the back component. Drill pilot holes through the back and insert 1 1/4″ screws into the sides. Make sure the corners are square and add waterproof glue to the joints. Align the edges flush before inserting the screws,

fitting-the-supports

Fitting-the-supports

Cut the supports for the top of the ramp using 1×4 lumber. Drill pocket holes at both ends of the supports and insert 1 1/4″ pocket screws. Add glue to the joints and make sure the corners are square.

attaching-the-top-of-the-ramp

Attaching-the-top-of-the-ramp

Attach the top to the skate ramp. Cut the top from 3/4″ plywood and attach it into place with 1 1/4″ screws. Countersink the head of the screws so that the surface is level.

attaching-the-masonite-panel

Attaching-the-Masonite-panel

Attach the 1/4″ thick masonite board to the top of the ramp. Align the edges with attention and lock it into place with glue and 1 1/4″ screws. Make sure the head of the screws are sunk into the masonite.

fitting-the-metal-tip

Fitting-the-metal-tip

Fit a 1/4″ thick steel plate to the ramp, as show in the diagram. Drill pilot holes through the plate and insert 1 1/4″ screws to lock it into place. You can adjust the size of the plate so it suits your needs.

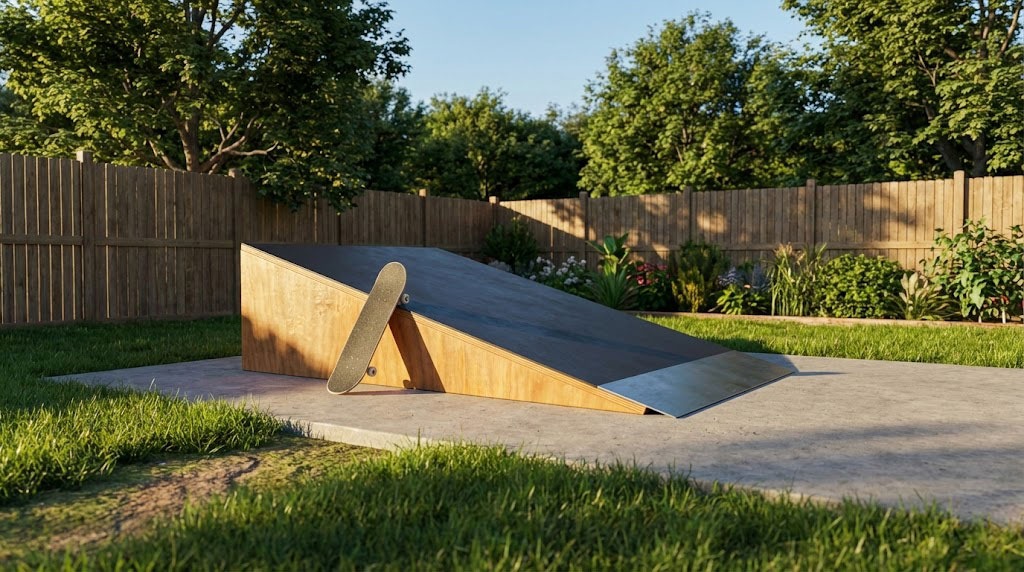

diy-skate-ramp-plans

Diy-skate-ramp-plans

You can adjust the angle of the skate ramp, as well as the design. In addition, you can apply a few coats of paint or stain to enhance the look of the project and to protect it from the elements.

skate-ramp-plans

Skate-ramp-plans

The skate ramp is super easy to build and it will take your skating abilities to the next level. If you like my project, don’t forget to SHARE it on Facebook and Pinterest.

Smart Tip: Don’t forget to share your projects with me, as I love seeing what you guys are working on. Send me the pics HERE. In addition, take a look over the rest of my DIY projects HERE.





Thank you for reading our project about skate ramp plans and I recommend you to check out the rest of the projects. Don’t forget to LIKE and SHARE our projects with your friends, by using the social media widgets. SUBSCRIBE to be the first that gets our latest projects.
