12 ft Heavy Duty Double Hammock Stand Plans – Free DIY Download

by Jack Sander
2 comments 1.3K views 5 minutes read



This step by step diy woodworking project is about 12 ft heavy double hammock stand. I have designed this wood stand so you can hang your double hammock and have some fun in the garden. The stand features lots of braces to handle all the lateral and longitudinal movements. You can adjust the size of the stand if you want to use it for shorter hammocks. Double check all the joints each season, to make sure they haven’t been damaged by the elements.

As you will see in this article, you don’t need big trees to set your hammock. On the contrary, you can move it wherever you want, if you decide to build a wood stand. Strange as it may seem, a hammock stand is a straight-forward project, but your just need to select the right plans for your needs. Moreover, invest in quality and durable lumber, such as cedar, pine or redwood. PDF downloadable plans with premium features in the Store.





Made from this plan

Add-Image

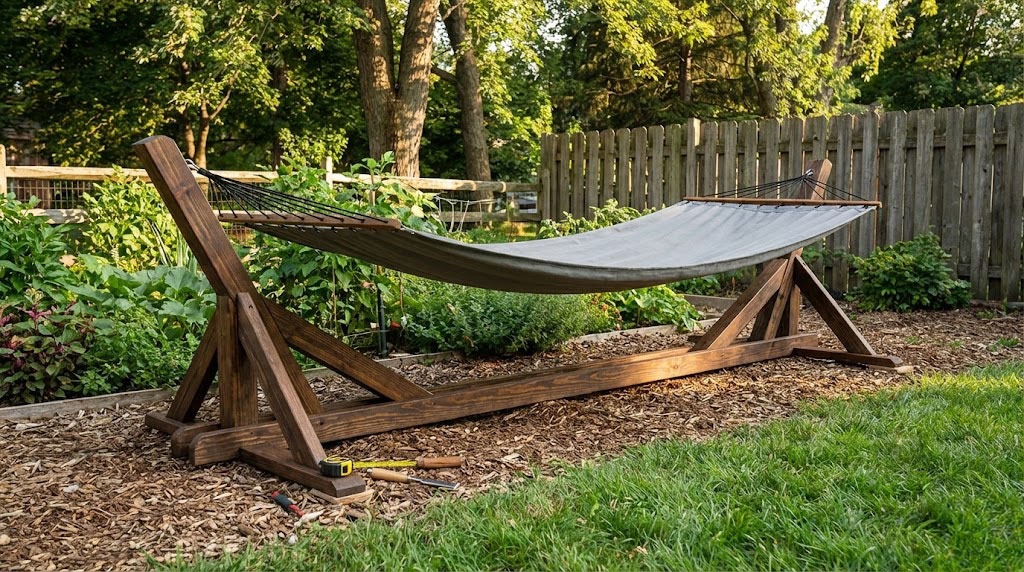

12 ft Double Hammock Stand Plans – Free DIY Download

Building a 12 ft hammock stand

Building a 12 ft hammock stand



Materials

  • A – 2 pieces of 4×4 lumber – 43 1/2” long SUPPORTS
  • B – 2 pieces of 2×4 lumber – 144” long BASE
  • C – 2 pieces of 4×4 lumber – 38 3/4″ long DIAGONAL BRACES
  • D – 2 pieces of 2×4 lumber – 48″ long BRACES
  • E – 2 pieces of 4×4 lumber – 18″ long BRACE
  • F – 4 pieces of 2×4 lumber – 25 1/4 LATERAL BRACES

  • 2 pieces of 2×4 lumber – 12 ft
  • 2 pieces of 2×4 lumber – 8 ft
  • 1 piece of 4×4 lumber – 8 ft
  • 1 piece of 4×4 lumber – 10 ft
  • 7″ carriage bolts
  • 2 1/2″ screws
  • 3 1/2″ screws
  • 4 1/2″ screws
  • Wood filler, Wood stain
  • Double Hammock

Tools

  • Safety gloves, glasses
  • Miter saw, jigsaw
  • Chalk line, tape measure, spirit level, carpentry pencil
  • Drill machinery and drill bits

Time

  • One Day

Related





Building a wood stand for a double hammock

Base beams

Base beams

The first step of the outdoor project is to build the two beams for the base of the hammock stand. Make the two notches to the beams using a circular saw. Make parallel cuts inside the marked areas and then remove the excess with a chisel. Smooth the recess with sandpaper.

Assembling-the-frame

Assembling-the-frame

Use 4×4 lumber for the supports. Make a 30 degree cut to the posts. Fit the supports between the two 2×4 beams. You need to set the posts 17″ from the ends of the beams.

Assembling the base for the stand

Assembling the base for the stand

Use speed clamps to lock the beams to the posts, before inserting pilot holes through the beams and posts. Insert 7″ carriage bolts to assemble the frame of the hammock stand. Use 2 bolts for each joint.

Fitting the base slats

Fitting the base slats

Fit the 2×4 supports under the base of the hammock stand. Center the supports to the frame slots, drill pilot holes and insert 2 1/2″ screws to lock them into place.

Fitting the diagonal braces

Fitting the diagonal braces

Use 4×4 diagonal braces for the frame of the hammock stand. Make the angle cuts to both ends of the braces and then lock them to the hammock stand with carriage bolts and screws.

Fitting the back brace

Fitting the back brace

In order to add more strength to the heavy duty stand, we will also install braces to the back of the supports. Make the 60 degree angle cut to one end of the brace and then lock it to the frame with screws.

Side braces - hammock stand

Side braces – hammock stand

Next, we will tackle the lateral movement of the stand and install braces. Use 2x4s for the braces and make 45 degree cuts at both ends. Fit the braces to the frame of the stand. Drill pilot holes and insert 3 1/2″ screws to lock the diagonal braces to the frame of the stand.

Double hammock stand plans

Double hammock stand plans

Fill the holes with wood putty and then smooth the surface with 120-220 grit sandpaper. Apply a few coats of stain over the components to make the stand pop out and to protect the components from the elements (you can also use pressure treated lumber for the base components at least).

Heavy duty 12 ft hammock stand plans

Heavy duty 12 ft hammock stand plans

This 12 ft wide stand is designed for a double hammock, and thus it is really strong. The stand has been designed to tackle properly the lateral movement and longitudinal movement.

12 ft hammock stand plans

12 ft hammock stand plans

Last but not least, we recommend you to take care of the finishing touches. Insert metal eye screws to the top of the supports, making sure they are placed symmetrically. Hang the hammock and check if it needs any adjustments. The hammock I recommend you in the materials list comes with all the hardware needed for the job. If you choose another product, make sure you also buy the eye screws, the hooks and the chain.

Smart Tip: Fill the holes with putty and smooth the wooden surface along the wood grain, by using medium-grit sandpaper. Apply several coats of stain or paint to the wooden components, if you want to protect them from decay. PDF downloadable plans with premium features in the Store.





Pin it for later!

How to build a 12 ft hammock stand



Thank you for reading our project about 12 ft heavy duty hammock stand and we recommend you to check out the rest of the projects. Don’t forget to LIKE and SHARE our projects with your friends, by using the social media widgets. SUBSCRIBE to be the first that gets our latest projects.



<b>PRINT PLAN<b> PRINT PLAN

EXPLORE MORE IDEAS:



You may also like

2 comments

Gigi - 3:52 pm

Hey, thank you for the over all plan. The only thing missing is the number and diameter of the screws and lag bolts. Hopefully, I counted correctly from the plans. I’ll know by the end of the day!

Reply
Jack Sander - 6:39 am

The number of the bolts, screws is available in the Premium version of the plans, available in the SHOP.

Reply
