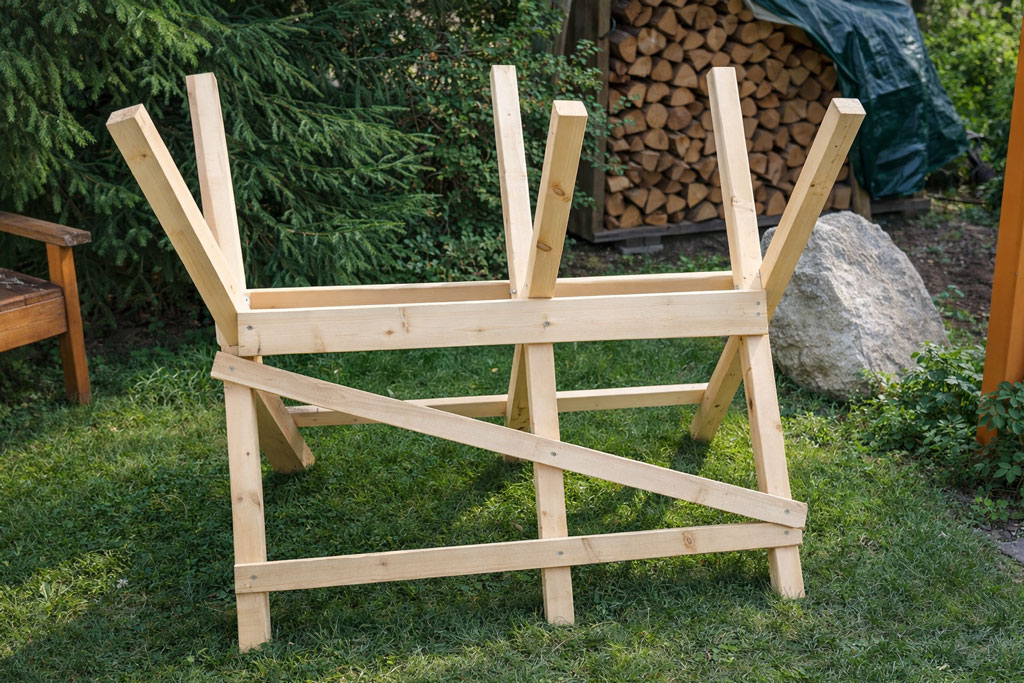

How to build a folding sawbuck

This step by step woodworking project is about how to build a folding sawbuck. If you are like me, you probably want to easy your work when cutting the firewood. However, if you have a limited space in your workshop building a sawbuck takes its toll. In this project I show you how I built a simple folding sawbuck from weather resistant lumber.

We recommend you to invest in the best materials you could afford. Therefore, you should buy weather-resistant lumber, such as pressure-treated lumber, pine or cedar. Always take accurate measurements before adjusting the size of the components at the proper size. Drill pilot holes trough the components before inserting the wood screws, to prevent the wood from splitting.

Made from this plan

It’s that easy to build a folding sawbuck!

Building a sawbuck

Materials

• A – 6 pieces of 2×4 lumber – 48″ long LEGS
• B – 2 piece of 2×4 lumber – 48″ long, 2 pieces of 2×3 lumber – 48″ long BRACES
• C – 2 pieces of 2×3 lumber – 49″ long BRACES

• 4 pieces of 2×4 lumber – 8 ft
• 2 pieces of 2×3 lumber – 8 ft
• 2 1/2″ screws
• 3 pieces of 3 1/2″ carriage bolts

Tools

• Safety gloves, glasses
• Miter saw, jigsaw
• Chalk line, tape measure, spirit level, carpentry pencil
• Drill machinery and drill bits

Tips

• Adjust the size of the beam to suit your needs

Time

• One Weekend

DIY Sawbuck plans

Building the legs

The first step of the project is to build the legs for the sawbuck. Use 2×4 lumber and cut one end of the beams at 60 degrees. Smooth the edges with sandpaper.

Drilling the pilot holes for joints

Measure the location for the bolt, so that the sawbuck can fold easily.

Fitting the braces

Use 2×4 lumber for the top supports and 2×3 lumber for the bottom braces.

Building the diagonal braces

Build the diagonal braces from 2×3 lumber. Cut both ends of the braces to get a professional result. Make 20.5 degree cuts to both ends of the braces.

Diagonal brace

Fit the diagonal brace to the sawbuck and lock it into place with 2 1/2″ screws, after drilling pilot holes

How to build a folding sawbuck

Sawbuck Legs

First of all, I cut the legs for the sawbuck. I used 2x3s instead of 2x4s, as I already had them in my shop. If you are going to do heavy cutting on the sawbuck, I recommend you to stick with the 2x4s, as they provide more support.

I used the miter saw to cut the ends of the legs at 60 degrees (30 degree cut).

Drilling the pilot holes

Then, I measured 30″ along the legs and marked the center. I used my drill to make a pilot hole for the 3 1/2″ bolts. Make sure the drill bit is slightly larger than the bolt, so that the legs can swing easily.

Bolts

For each joint you will need a 3 1/2″ bolt, washers and a nut.

Fitting the bolts

Fit the bolt to the legs, as shown in the diagram and place a washer to the joint. The washer will create a gap between the legs, so they can swing easily.

Assembling-the-legs

Fit the other leg, fit the washer and tighten the nut.

X-Legs

This is a good time to test the joint and see if the legs fold easily. I repeated the process for the rest of the two supports.

Assembling the sawbuck

Next, I cut the top brace from 2×4 lumber and attached it to the legs using 2 1/2″ screws. I drilled pilot holes to prevent the wood from splitting. Use a spirit level to plumb the legs and to see if the brace is horizontal.

Fitting the middle legs

I attached the other support to the saw buck. The project is starting to take shape nicely. It is essential to align the component properly, otherwise the sawbuck won’t fold easily.

Fitting the bottom brace

I used 2x3s for the bottom braces. I measure the distance between the legs, so I can get consistent gaps.

Fitting the supports on the opposite side

I attached the brace to the opposite side of the sawbuck. Now the project is all about patience and accuracy. So measure everything twice before attaching the components into place.

More braces

The bottom brace is attached now to the other side, as well.

Fitting the diagonal braces

I folded the sawbuck so I can make sure the diagonal brace won’t twist the joints. I fitted the 2×3 brace loosely and then secured it into place with 2 1/2″ screws, after drilling pilot holes.

Diagonal Braces

I attached the diagonal brace to the opposite side of the sawbuck to enhance the rigidity of the structure.

How to build a folding sawbuck

I used a saw to cut off the excess material from the diagonal braces. Next, I sanded the components with 80 grit sandpaper, followed by 120 grit sandpaper. Make sure you tie the bottom of the legs together with string, so that the sides are locked together when cutting wood.
