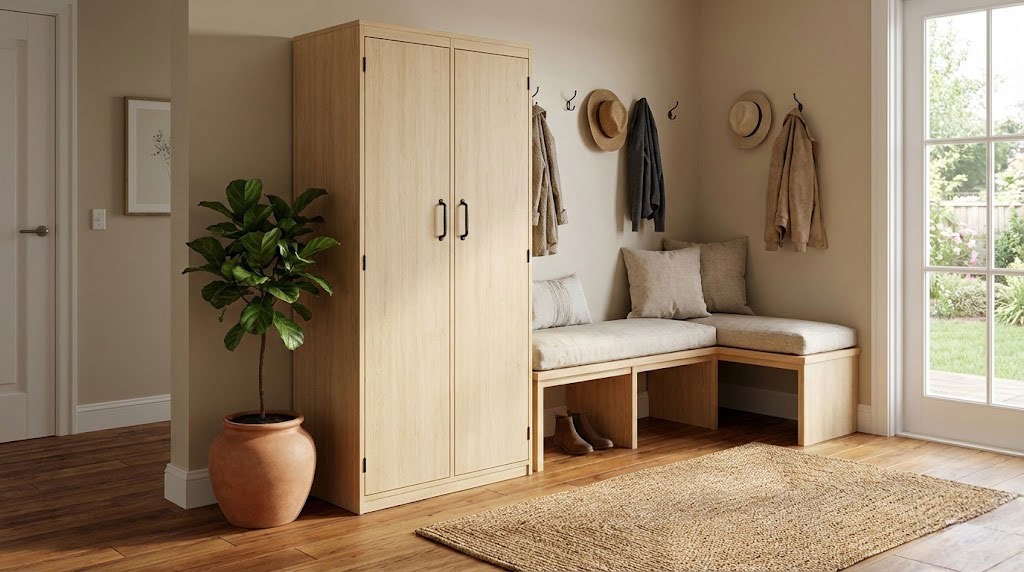

Wooden Locker Plans

This step by step diy woodworking project is about wooden locker plans. If you want to learn more about building a locker out of plywood, we suggest you to take a look over the instructions described in this article. If you want to see more furniture plans, we recommend you to pay attention to the rest of the projects that are featured on our website and to invest in high-quality materials.

Before starting the actual construction project, we recommend you to plan everything, as to save money and to keep the costs under control. Adjust the size and the design of the locker to suit your needs. In addition, we recommend you to invest in high-quality materials, such as pine, redwood or cedar, as they have a nice finish and are highly durable, especially in a humid environment.

If you don’t have a rich expertise in woodworking field, you should ask a friend to give you a hand with the project. There are many things that you could go wrong, so make sure you plan everything and invest in quality materials. Select the lumber with attention, making sure the components are perfectly straight and in a very good condition. Use a carpentry square to check if the corners are right-angled.



Made from this plan

Add-Image



Wooden Locker Plans

Building a locker

Building a locker



Materials

  • A – 2 pieces of 3/4″ plywood – 15 3/4″x69 1/2″ lumber – 78″ long, 1 pieces – 15 3/4″x67 1/4″ long SIDES
  • B – 1 piece of 3/4″ plywood – 30 1/2″x15 3/4″ long, 1 piece – 32″x15 3/4″ long FRAME
  • C – 8 pieces of 1×2 lumber – 13″ long, 4 pieces of 3/4″ plywood – 13″x14 7/8″ long SHELVES
  • D – 1 pieces of 1×2 lumber – 30 1/2″ long, 2 pieces – 14 7/8″ long SUPPORTS
  • E – 2 pieces of 3/4″ plywood – 14 5/8″x65 1/2″ DOORS
  • F – 4 metal hinges, 2 door handles HARWARE
  • G – 1 piece of 1/2″ plywood – 32″x70 1/4″ long BACK



Tools

  • Safety gloves, glasses
  • Miter saw, jigsaw
  • Chalk line, tape measure, spirit level, carpentry pencil
  • Drill machinery and drill bits



Tips

  • Apply several coats of wood stain to the wooden components
  • Fill the holes with wood filler and smooth the surface



Time

  • One Day



Related





Building a Wooden Locker

Building the frame of the locker

Building the frame of the locker



The first step of the woodworking project is to build the frame of the locker. Cut the components out of 3/4″ plywood, making sure they are 15 3/4″ wide. Drill pocket holes as described in the diagram and secure them together with 1 1/4″ galvanized screws. Add waterproof glue to the joints in order to create a rigid structure. Check if the corners are right-angled before inserting the screws.



Building the frame of the locker

Building the frame of the locker



Fit the divider inside the frame of the locker, as it has a functional and a structural role. Drill pocket holes at both ends of the divider and secure it into place with galvanized screws, after checking if the corners are right-angled.



Attaching the back

Attaching the back



Cut a piece of 1/2″ plywood at the dimensions described in the diagram and secure it to the frame with finishing nails and waterproof glue. Make sure the corners are square before inserting the screws. Smooth the cut edges with sandpaper in order to get a professional result.



Fitting the supports

Fitting the supports



Continue the woodworking project by attaching the supports to the wooden locker, as shown in the plans. Drill pocket holes at both ends of the supports and secure them to the frame, making sure there are no gaps between the components.



Attaching the shelves

Attaching the shelves



Building the shelves for the locker is a straight-forward process that will add value to your woodworking project. In order to get the job done in a professional manner, we suggest you to secure the cleats to the frame with 1 1/4″ screws, after making sure they are horizontal. Attach the shelves to the cleats, making sure the pieces of plywood fit properly into place. Smooth the edges with sandpaper.



Building the doors

Building the doors



Build the doors for the locker, out of 3/4″ plywood. Make sure there is a gap of around 1/8″ around the doors otherwise they won’t be able to open and close properly. Take accurate measurements and smooth the edges with sandpaper after making the straight cuts.



Attaching the handles and hinges

Attaching the handles and hinges



One of the last steps of the woodworking project is to secure the doors to the frame with metal hinges. In addition, install the handles to the doors, making sure you choose a design that matches the rest of the furniture in your room.



Wooden locker plans

Wooden locker plans



Last but not least, we recommend you to take care of the finishing touches. Fill the holes with wood filler and let it to dry out for several hours. Afterwards, smooth the wooden surface with fine-grit sandpaper and vacuum the residues.

Smart Tip: Apply several coats of stain or paint to the wooden components, if you want to protect them from decay and to enhance the look of the wooden locker plans.





Thank you for reading our project about wooden locker plans and we recommend you to check out the rest of the projects. Don’t forget to share our projects with your friends and LIKE us, by using the social media widgets. SUBSCRIBE if you want to be the first that gets our latest articles.
