Diy Console Table Plans

This step by step diy woodworking project is about diy console table plans. If you want to learn more about building a console table, we recommend you to pay attention to the instructions described in the article. There are many designs to choose from when building this kind of project, so make sure you take a look over the related projects that are featured on our site.

Before starting the actual construction project, we recommend you to plan everything, as to save money and to keep the costs under control. Adjust the size and the design of the rolling bed table to suit your needs. In addition, we recommend you to invest in high-quality materials, such as pine, redwood or cedar, as they have a nice finish and are highly durable, especially in a humid environment.

If you don’t have a rich expertise in woodworking field, you should ask a friend to give you a hand with the project. There are many things that you could go wrong, so make sure you plan everything and invest in quality materials. Select the lumber with attention, making sure the components are perfectly straight and in a very good condition. Use a carpentry square to check if the corners are right-angled. See all my Premium Plans in the Shop.



Made from this plan

Add-Image

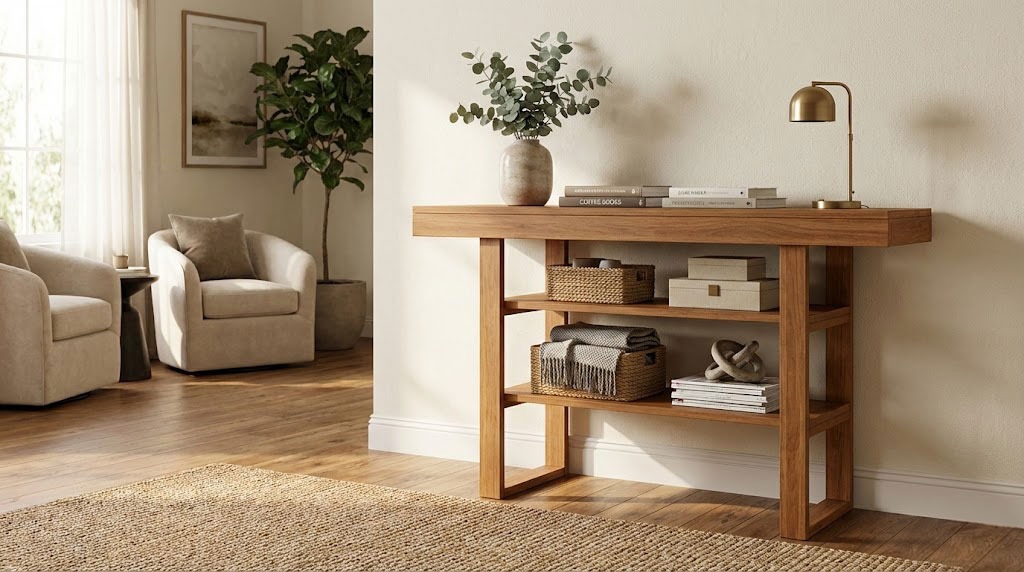

Diy Console Table Plans

Building a console table

Building a console table



Materials

  • A – 4 pieces of 1×3 lumber – 31 1/4″ long, 8 pieces – 13″ long LEGS
  • B – 2 piece of 1×3 lumber – 48″ long, 2 pieces – 14 1/2″ long FRAME
  • C – 1 piece of 3/4″ plywood – 16″x48″ long TABLETOP
  • D – 2 pieces of 3/4″ plywood – 13″x30 1/2″ long SHELVES

Tools

Tips

  • Apply several coats of wood stain to the wooden components
  • Fill the holes with wood filler and smooth the surface

Time

  • One Day

Related





Building a console table

Building the supports

Building the supports



The first step of the woodworking project is about building the legs of the console table, using 1×3 lumber. Cut the components at the right size and lock them together with galvanized screws, making sure the corners are right-angled. Drill pocket holes at both ends of the horizontal components and lock them to the vertical legs with 1 14″ screws.



Attaching the shelves

Attaching the shelves



Continue the project by attaching the 3/4″ plywood shelves to the supports, as shown in the diagram. Cut the plywood at the right size and fit them into place with galvanized screws. Add waterproof glue to the joints, in order to create a rigid structure. Make sure the shelves are horizontal and the corners square. Smooth the cut edges before fitting the shelves into place.



Building the countertop

Building the countertop



Building the tabletop of the console table is a straight forward, but you need to use the most appropriate techniques and to assemble the components tightly. Cut a piece of plywood at the dimensions shown in the image and lay it in on a level surface. Assemble the frame of the table using 1×3 slats and attach it to the counter-top. Drill pocket holes through the bottom of the supports and secure them into place with screws and waterproof glue.



Attaching the tabletop

Attaching the tabletop



Fit the frame of the console table inside the tabletop, and make sure it is centered. Drill pocket holes through the supports and secure the frame to the counter-top with 1 1/4″ galvanized screws. Make sure the corners are square and the joints are very rigid.



Diy console table plans

Diy console table plans



Last but not least, we recommend you to take care of the finishing touches. Fill the holes with wood filler and let it to dry out for several hours. Afterwards, smooth the wooden surface with fine-grit sandpaper and vacuum the residues.

Smart Tip: Apply several coats of stain or paint to the wooden components, if you want to protect them from decay and to enhance the look of the rolling console table. If you want to get this plan as a PDF file, please take a look over the GET PDF PLANS button bellow. Thank you for the support!





Thank you for reading our project about diy console table plans and we recommend you to check out the rest of the projects. Don’t forget to share our projects with your friends and LIKE us, by using the social media widgets. SUBSCRIBE if you want to be the first that gets our latest articles.
