Home Workshop Rain Barrel Stand Plans

Rain Barrel Stand Plans

by Jack Sander
3 comments 342 views 3 minutes read



This step by step woodworking project is about rain barrel stand plans. I have designed this sturdy stand so you can have a barrel for collecting rain water. Remember that you need to adjust the height and the size of the top to suit your needs. My plans come with step by step instructions and you can easily adjust all the dimensions to suit your needs. See my other DIY projects HERE.

We recommend you to invest in the best materials you could afford. Therefore, you should buy weather-resistant lumber, such as pine or cedar. Always take accurate measurements before adjusting the size of the components at the proper size. Drill pilot holes trough the components before inserting the wood screws, to prevent the wood from splitting. See all my Premium Plans in the Shop.





Made from this plan

Add-Image





Rain Barrel Stand Plans

Building a rain barrel stand

Building a rain barrel stand



Materials

  • A – 4 pieces of 4×4 lumber – 34 1/2″ long LEGS
  • B – 2 pieces of 2×4 lumber – 21″ long, 1 piece – 15″ long BRACES
  • C – 2 pieces of 2×4 lumber – 21″ long, 2 pieces – 18″ long SUPPORT
  • D – 5 pieces of 2×4 lumber – 21″ long TOP

  •  2 pieces of 4×4 lumber – 8′
  • 3 pieces of 2×4 lumber – 8′
  • 2 1/2″ screws
  • stain, glue, putty

Tools

  • Safety gloves, glasses
  • Miter saw, jigsaw
  • Chalk line, tape measure, spirit level, carpentry pencil
  • Drill machinery and drill bits

Time

  • One Day





Building a rain barrel stand

Building the legs

Building the legs

The first step of the project is to build the legs for the rain barrel stand. Mark the cut lines on the legs and use a circular saw to make parallel cuts. Remove the excess with a chisel and smooth the recess with sandpaper.

Bottom braces

Bottom braces

Attach the 2×4 braces to the legs, as shown in the diagram. Drill pilot holes and insert 2 1/2″ screws to lock everything together tightly. Make sure the corners are square and add glue to the joints.

Fitting the stretcher

Fitting the stretcher

Fit a 2×4 stretcher to the bottom of the rain barrel stand. Drill pilot holes and insert 2 1/2″ screws. Make sure the corners are square and add glue to the joints.

Building the top frame

Building the top frame

Build the top supports from 2×4 slats, as well. Cut the components at the right components, drill pilot holes and insert 2 1/2″ screws to lock them into place tightly. Add glue to the joints for a neat result.

Fitting the top stand

Fitting the top stand

Attach 2×4 slats to the top of the barrel stand. Place a piece of 1″ lumber between the slats to create even gaps. Drill pilot holes and insert 2 1/2″ screws to get the job done in a professional result.

Wood rain barrel stand plans

Wood rain barrel stand plans

Smooth the edges with sandpaper and fill the gaps with wood putty. After evening out the surface, you need to apply a few coats of stain or paint to protect the components from the elements.

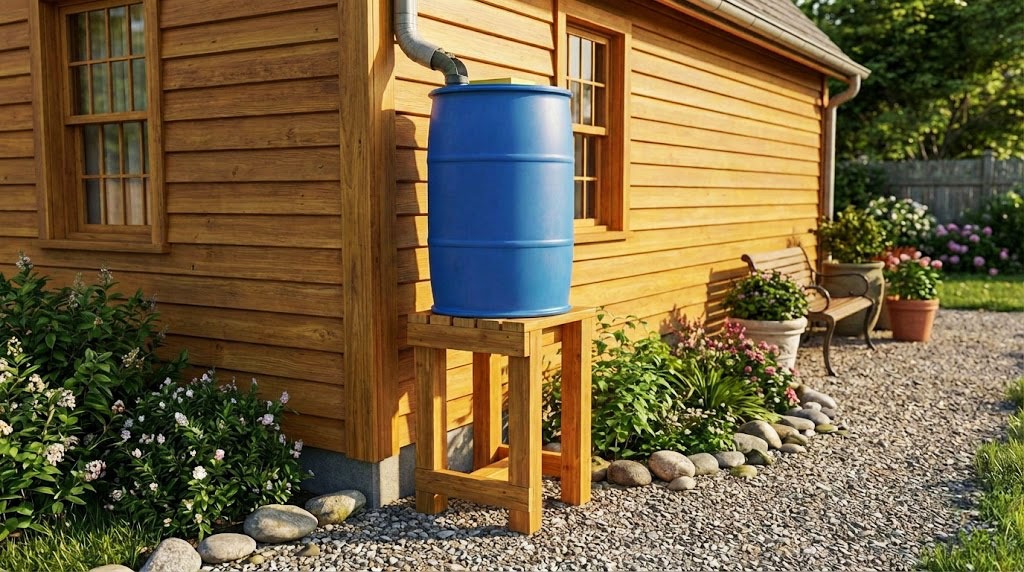

Rain barrel stand plans

Rain barrel stand plans

If you want save rain water, then you need to build a barrel stand. With these easy to follow plans you can make a stand that is both sturdy and that has a nice appearance. If you like my project, don’t forget to SHARE it on Facebook and Pinterest.

Smart Tip: Don’t forget to share your projects with me, as I love seeing what you guys are working on. Send me the pics HERE. In addition, take a look over the rest of my DIY projects HERE.





Thank you for reading our project about rain barrel stand plans and I recommend you to check out the rest of the projects. Don’t forget to LIKE and SHARE our projects with your friends, by using the social media widgets. SUBSCRIBE to be the first that gets our latest projects.
