This step by step woodworking project is about wooden vegetable trough planter plans. I have designed this sturdy off the ground garden planter, so you can start your own vegetable garden on your own patio or deck. Moreover, you can easily take care of the vegetables, as the planter is waist-high. Make sure you invest in weather resistant lumber (cedar, redwood), as the components will be exposed to the weather elements. See my other DIY projects HERE.

We recommend you to invest in the best materials you could afford. Therefore, you should buy weather-resistant lumber, such as pine or cedar. Always take accurate measurements before adjusting the size of the components at the proper size. Drill pilot holes trough the components before inserting the wood screws, to prevent the wood from splitting. See all my Premium Plans HERE.





Made from this plan

Add-Image

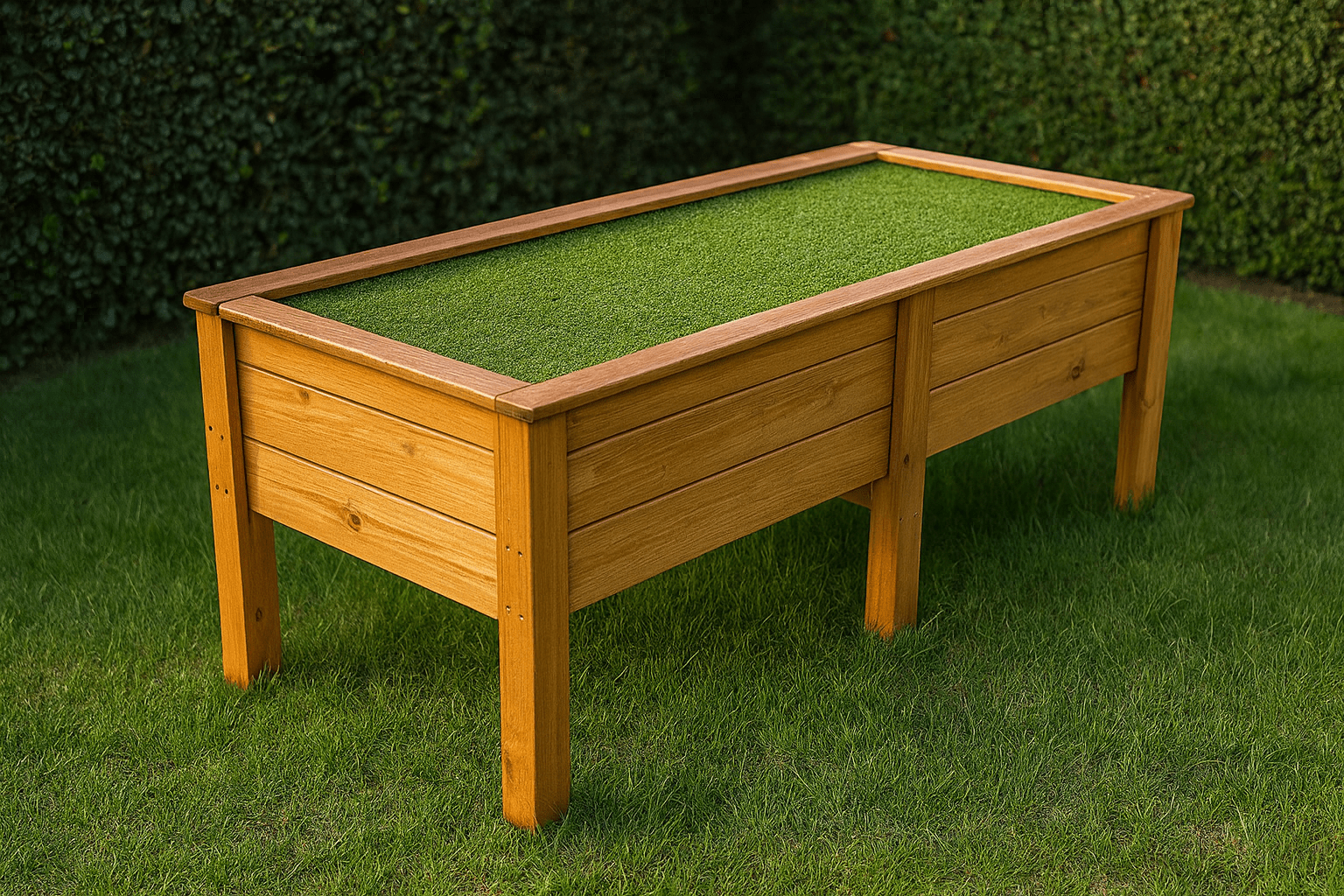

Vegetable Trough Planter – Free DIY Plans

Building a vegetable raised planter

Building a vegetable raised planter



Materials

  • A – 6 piece of 2×4 lumber – 29 1/4″ long, 3 pieces – 25″ long LEGS
  • B – 6 piece of 2×6 lumber – 72″ long SLATS
  • C – 4 piece of 2×6 lumber – 72″ long SLATS
  • D – 6 pieces of 2×6 lumber – 32″ long END SLATS
  • E – 2 pieces of 1×4 lumber – 75″ long, 2 pieces of 1×2 lumber – 26″ long TRIMS

  • 3 pieces of 2×4 lumber – 12′
  • 7 pieces of 2×6 lumber – 12′
  • 2 piece of 1×4 lumber – 8′
  • 1 piece of 1×2 lumber – 6′
  • 2 1/2″ screws, 1 5/8″ screws
  • 2″ nails
  • wood filler , wood glue,
  • hardware cloth, staples
  • vegetable soil

Tools

  • Safety gloves, glasses
  • Miter saw, jigsaw
  • Chalk line, tape measure, spirit level, carpentry pencil
  • Drill machinery and drill bits

Time

  • One Day





How to build a raised planter box

Building the legs for the planter

Building the legs for the planter\

The first step of the project is to build the 3 frames for the vegetable trough. Cut the components at the dimensions shown in the plans. Drill pocket holes at both ends of the 25″ horizontal supports and insert 2 1/2″ screws to lock them together tightly. Align the edges with attention and make sure the corners are right-angled.

Fitting the front and back wall slats

Fitting the front and back wall slats

Attach 2×6 slats to the sides of the vegetable raised planter, using 2 1/2″ screws. Drill pilot holes before inserting the screws, to prevent the wood from splitting.

Fitting the bottom slats

Fitting the bottom slats

Fit the 2×6 slats to the bottom of the elevated planter box. Align the edges with attention, drill pilot holes and insert 2 1/2″ screws to lock them into place tightly.

Top diagonal slats

Top diagonal slats

Use a table saw to make bevel cuts to the slats that go to the top of the front and back walls. Use a sander to smooth the edges thoroughly.

Fitting the top diagonal slats

Fitting the top diagonal slats

Fit the slats to the planter and lock them into place with 2 1/2″ screws, after drilling pilot holes.

Fitting the side slats

Fitting the side slats

Fit the 2×6 slats to the ends of the planter box. Align the edges with attention, leave no gaps and drill pilot holes. Insert 2 1/2″ screws to lock them into place tightly.

Fitting the trims

Fitting the trims

Fit the 1×4 and 1×2 trims to the top of the planter. Align the edges with attention and insert 2″ nails to lock them into place tightly. Align the edges and leave no gaps between the components.

Vegetable Trough Planter Plans

Vegetable Trough Planter Plans

Fill the holes with wood putty and then smooth the surface with 120-220 grit sandpaper.

How to Build a Vegetable Trough Planter

How to Build a Vegetable Trough Planter

Fill the vegetable trough planter with the appropriate soil and then make sure you start your garden. Make sure you check all my planter plans HERE. If you like my project, don’t forget to SHARE it on Facebook and Pinterest.

Smart Tip: Don’t forget to share your projects with me, as I love seeing what you guys are working on. Send me the pics HERE. In addition, take a look over the rest of my DIY projects HERE.





Thank you for reading our project about vegetable trough planter plans and I recommend you to check out the rest of the projects. Don’t forget to LIKE and SHARE our projects with your friends, by using the social media widgets. SUBSCRIBE to be the first that gets our latest projects.
