Outdoor playset plans

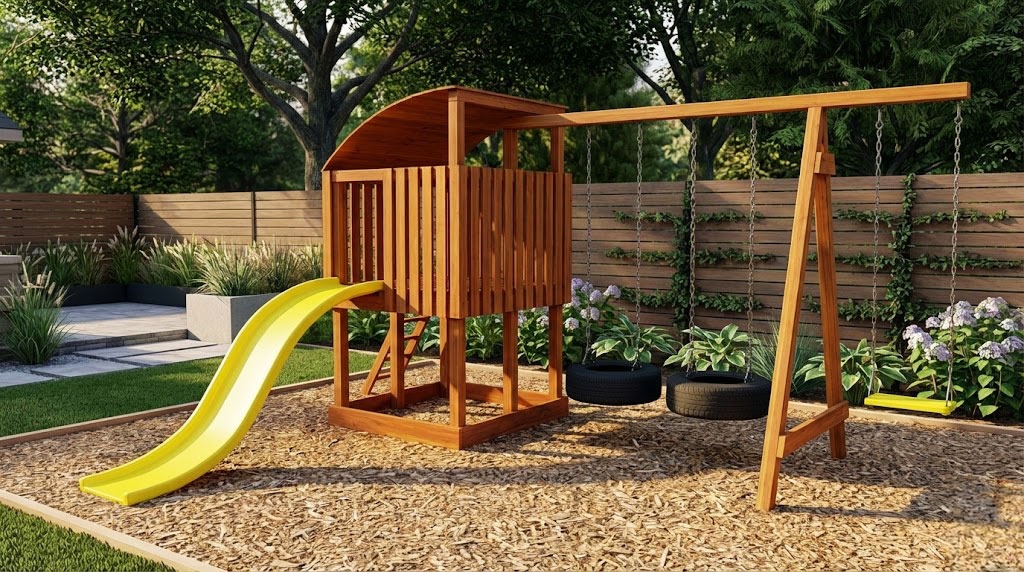

This step by step woodworking project is about outdoor playset plans. If you have a backyard and you want to keep your kids busy while putting a large smile on their faces, we recommend you to consider building a playset. Make sure you pay attention to the safety side of the project, meaning that you should insert all the screws properly and round the corners and sharp edges of the constructions.

Taking into account there are so many plans and designs you could choose from, we recommend you to check out the rest of our projects and select the one that fits your needs, tastes and budget. In addition, don’t forget that you could always adjust the size of the playground. Add several swings and a slide to the construction, if you want to keep your kids entertained for many hours.

Invest in quality lumber if you want to build a durable construction. Ask a handy friend to help you during the project, as it requires many measurements, cuts and alignment. While a person holds the components into place, the other one can drill pilot holes and insert the galvanized screws. Add waterproof glue to the joints, if you want to increase the rigidity of the frame.



Made from this plan

Add-Image



Outdoor playset plans

Building an outdoor playset

Building an outdoor playset



Materials

  • A – 2 pieces of 4×4 lumber – 110″, 2 pieces – 89 1/2″, 1 piece – 48 1/2″ POSTS
  • B – 4 pieces of 2×8 lumber – 60″ long FRAME
  • C – 2 pieces of 2×6 lumber – 63″ long, 3 pieces – 57″ long FRAME
  • D – 10 pieces of 2×6 lumber – 63″ long DECKING
  • E – 37 pieces of of 1×4 – 46 1/2″ long BALUSTERS
  • F – 2 pieces of 2×4 lumber – 57″ long, 2 pieces – 63″ long RAFTERS
  • G – 2 pieces of 4×4 lumber – 110 3/4″ long, 1 piece – 147 1/2″ long, 1 piece of 2×6 – 13 1/2″ long, 1 piece – 53 1/4″ long SWING
  • H – 2 pieces of 2×4 lumber – 46″ long, 8 pieces – 13 3/4″ long LADDER



Tools



Tips

  • Apply several coats of wood stain to the wooden components
  • Adjust the size of the shelves, according to your needs and tastes



Time

  • One Day



Related





Building an outdoor playset

Building the frame of the playset

Building the frame of the playset



The first step of the woodworking project is to build the frame of the tower. Use 4×4 lumber for the posts and lay them out in a professional manner. Make sure you dig 1-3′ deep holes and set the posts in concrete, in order to create a rigid structure. Use a spirit level to check if the posts are perfectly plumb before pouring the concrete. Afterwards, install 2×8 beams to the bottom of the structure, as described in the diagram. Drill pilot holes and insert 2 1/2″ screws to lock the beams to the posts in a professional manner.



Fitting the posts

Fitting the posts



Dig 1-3′ deep holes (at least 6″ under the frost line) and pour a 2″ layer of gravel. Install tube forms and fit the posts into place, making sure they are perfectly plumb. Secure the posts with braces before filling the forms with concrete.

Smart Tip: Alternatively, you could use posts anchors. As you can see in the image, you need to secure the metal anchors into concrete, as to lock the wooden posts into place properly. Align everything with attention and with great care.



Building the floor frame

Building the floor frame



The next step of the project is to assemble the frame of the floor. Cut the 2×6 joists at the right size and secure them to the posts, as described in the diagram. Use a spirit level to make sure the corners are square and the joists perfectly horizontal. Leave no gaps between the components and add glue to enhance the bond of the joints.



Fitting the top rafters

Fitting the top rafters



Next, you have to fit the 4×4 post that will support the swing area, as well as the 2×4 rafters. Plumb the post with a spirit level before locking it into place with screws. Cut the rafters at the right size and secure them to the top of the posts using 2 1/2″ screws and glue.



Fitting the floor slats

Fitting the floor slats



Build the decking out of 2×6 lumber. Lay the slats to the floor and align them at both ends with great attention. Place the slats equally-spaced and secure them to the joists using 2 1/2″ screws, after drilling pilot holes.



Building the floor slats

Building the floor slats



Use the information in the diagram to make the notches to the slats that are fit around the posts. Use a circular saw to make several parallel cuts and a chisel to remove the excess material. Sand the cut edges and remove the excess with a damp cloth.





Building the back wall

Building the back wall



Building the walls for the outdoor playset is a straight-forward process, but you need to pay attention to a few aspects, in order to get a professional result. Build the components out of 1×4 lumber and secure the slats to the structure using 1 1/4″ screws, after drilling pilot holes. Make sure you place the slats equally-spaced, as to get a professional result.



Ladder Wall

Ladder Wall



Continue the project by fitting the rails to the other sides of the outdoor play tower.



Building the back wall

Building the back wall



Continue the project by fitting the rails to the other sides of the outdoor play tower.



Building the front wall

Building the front wall



Adjust the size of the opening according to your needs (the width of the slide).



Building the A-frame

Building the A-frame



Build the A-frame supports out of 4×4 lumber, using the information described in the diagram. Make accurate cuts and take your time when marking the cut lines.



Cutting the top of the posts

Cutting the top of the posts



Check out the diagram for more information regarding the way you have to cut the top of the posts.



Fitting the braces

Fitting the braces



Build the braces out of 2×6 lumber. Cut both ends of the braces at 75 degrees and secure them to the posts using 2 1/2″ screws. Add glue to the joints and remove the excess with a damp cloth.



Building the swing

Building the swing



Install the top beam to the outdoor as described in the diagram. Drill pilot holes and insert 6″ screws to create a rigid structure. In addition, Make sure the top beam is horizontal and the A-frame is perfectly plumb. Use metal hardware to enhance the rigidity of the structure.



Building the ladder

Building the ladder



Building the ladder for the outdoor playset is a straight-forward process, as you need to build the components out of 2×4 lumber. Take accurate measurements and adjust the size of the components using a circular saw. Drill pilot holes through the supports and insert 2 1/2″ screws into the steps. Make sure the steps are equally-spaced and leave no gaps between the components for a rigid structure.



Attaching the ladder

Attaching the ladder



Fit the ladder to the opening and secure the supports to the joists by using 3 1/2″ screws. Make sure there are no gaps between the components and double-check if all the joints are rigid.



Outdoor playset plans

Outdoor playset plans



Last but not least, you should take care of the finishing touches. In order to build a playground with a neat appearance, you have to fill the holes with a good wood filler and smooth the surface with 120-grit sandpaper along the wood grain, after the compound has dried out.

Smart Tip: Apply several coats of stain or paint over the wooden components, in order to protect the components from decay and to enhance their look.





Thank you for reading our project about outdoor playset plans and we recommend you to check out the rest of the projects. Don’t forget to LIKE and SHARE our projects with your friends, by using the social media widgets.
