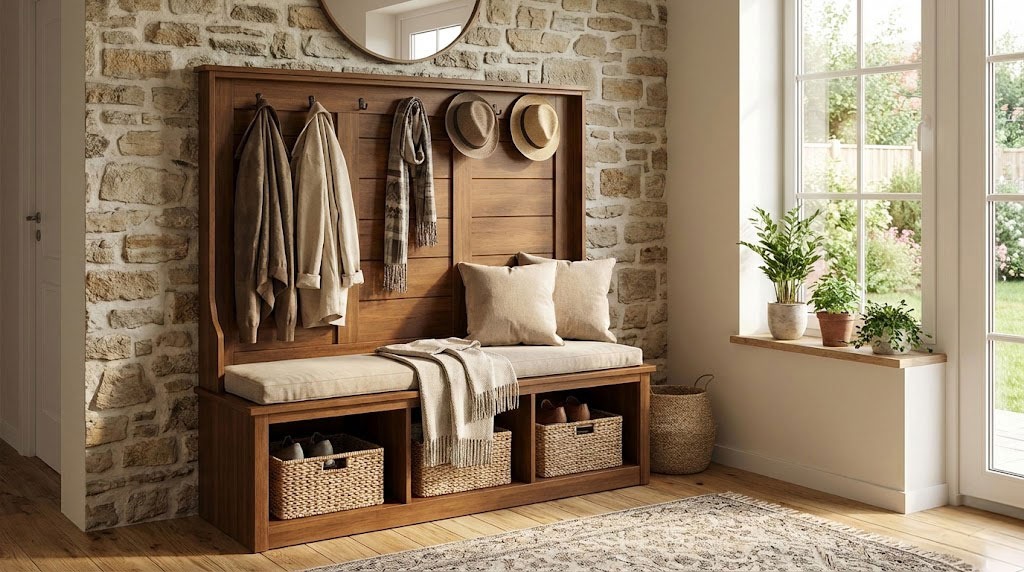

Hall Tree Plans

This step by step diy woodworking project is about hall tree bench. If you want to learn more about building a hall tree, we recommend you to pay attention to the instructions described in the article. There are so many bench plans and designs to choose from, so make sure you take a close look over the rest of the related woodworking projects that are featured on our website.

Before starting the actual construction project, we recommend you to plan everything, as to save money and to keep the costs under control. Adjust the size and the design of the bench to suit your needs. In addition, we recommend you to invest in high-quality materials, such as pine, redwood or cedar, as they have a nice finish and are highly durable, especially in a humid environment.

If you don’t have a rich expertise in woodworking field, you should ask a friend to give you a hand with the project. There are many things that you could go wrong, so make sure you plan everything and invest in quality materials. Select the lumber with attention, making sure the components are perfectly straight and in a very good condition. Use a carpentry square to check if the corners are right-angled. See all my Premium Plans in the Shop.

Made from this plan

Building a hall tree

Materials

A – 2 pieces of 1×4 lumber – 59 3/4″ long, 2 pieces – 39 1/2″ long, 2 pieces – 52 3/4″ long FRAME
B – 14 pieces of 1×6 lumber – 46 1/2″ long PANEL
C – 1 piece of 1×2 lumber – 46 1/2″ long, 1 piece pf 2×3 lumber – 48″ long TRIMS

3 pieces of 1×4 lumber – 10 ft
7 pieces of 1×6 lumber – 8 ft
1 piece of 1×2 lumber – 4 ft
1 piece of 2×3 lumber – 4 ft
1 1/4″ screws
glue, stain
wood filler

Tools

Safety gloves, glasses
Miter saw, jigsaw
Chalk line, tape measure, spirit level, carpentry pencil
Drill machinery and drill bits

Tips

Apply several coats of wood stain to the wooden components
Fill the holes with wood filler and smooth the surface

Time

One Day

Part 1: Hall tree bench plans
Part 2: Hall tree bench

Building a hall tree

Building the frame of the tree hall

The first step of the woodworking project is to build the frame of the hall tree. As you can easily notice in the plans, we recommend you to cut the components out of 1×4 lumber. Drill pocket holes at both ends of the horizontal components and secure them to the side components. Make sure the corners are right-angled and add glue to enhance the rigidity of the joints. Drill pocket holes at both ends of the partitions and secure them to the frame. Leave no gaps between the components.

Fitting the back slats

The next step of the project is to attach the 1×6 slats to the back of the hall tree. As you can notice in the plans, we recommend you to align the components at both ends and to secure them to the frame by using 1 1/4″ screws. Leave no gaps between the components and smooth the edges with sandpaper. Make sure you lock all the slats together. Drill pocket holes along the bottom edge and insert 1 1/4″ screws.

Fitting the trim

Attach a 1×2 trim to the top of the components and secure it into place using 1 1/4″ screws and glue. Leave no gaps between the components.

Attaching the top trim

Cut the top trim out of 2×3 lumber and attach it into place, as described in the image.

Hall tree plans

Last but not least, we recommend you to take care of the finishing touches. Fill the holes with wood filler and let it to dry out for several hours. Afterwards, smooth the wooden surface with fine-grit sandpaper and vacuum the residues.

Smart tip: Apply several coats of stain or paint to the wooden components, if you want to protect them from decay and to enhance the look of the bench.

Thank you for reading our project about hall tree plans and we recommend you to check out the rest of the projects. Don’t forget to share our projects with your friends and LIKE us, by using the social media widgets, if you want to be the first that gets our latest articles.
