Free Bar Plans

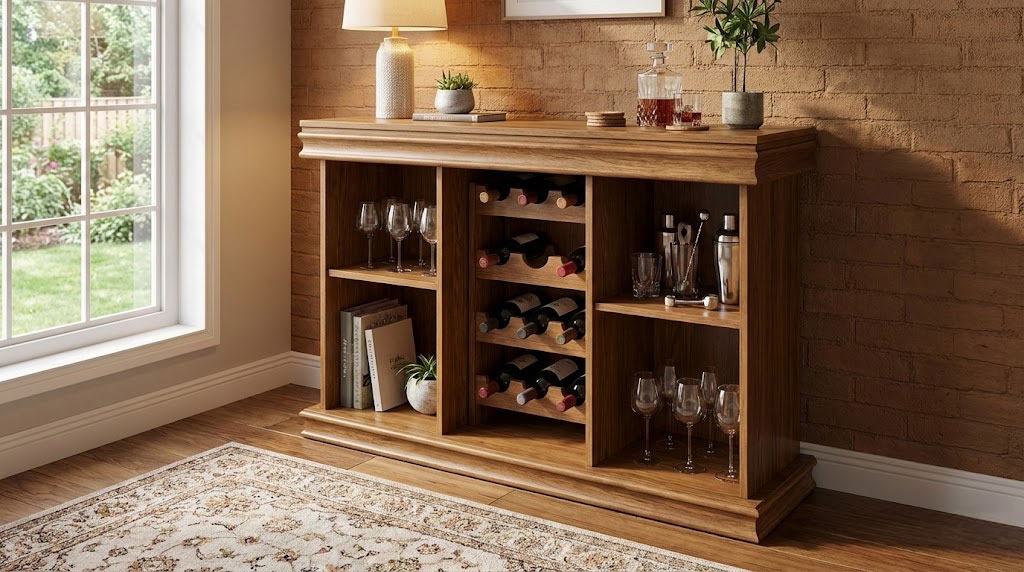

This step by step diy woodworking project is about free bar plans. If you want to learn more about building a wooden bar, we recommend you to pay attention to the instructions detailed in the article. There are many plans and designs to choose from when building a bar for your home, so we really suggest you to take a look over the rests of the related woodworking projects.

Before starting the actual construction project, we recommend you to plan everything, as to save money and to keep the costs under control. Adjust the size and the design of the armoire to suit your needs. In addition, we recommend you to invest in high-quality materials, such as pine, redwood or cedar, as they have a nice finish and are highly durable, especially in a humid environment.

If you don’t have a rich expertise in woodworking field, you should ask a friend to give you a hand with the project. There are many things that you could go wrong, so make sure you plan everything and invest in quality materials. Select the lumber with attention, making sure the components are perfectly straight and in a very good condition. Use a carpentry square to check if the corners are right-angled. See all my Premium Plans in the Shop.



Made from this plan

Add-Image



Free Bar Plans

Building a bar

Building a bar



Materials

  • A – 2 pieces of 1×3 lumber – 56″ long, 5 pieces – 17 1/4″ long FRAME
  • B – 1 pieces of 3/4″ plywood – 18 3/4″x56″ long BASE
  • C – 4 piece of 3/4″ plywood – 16″x28 1/2″ long SIDES
  • D – 1 piece of 3/4″ plywood – 34 1/2″x54″ long FACE
  • E – 2 pieces of 3/4″ plywood – 16″x16″ long SHELVES
  • F – 2 pieces of 3/4″ plywood – 20 1/4″x”57 1/2 long COUNTERTOP
  • G – 4 pieces of 1×8 lumber – 19″ long, 4 pieces – 11 1/2″ long SUPPORTS

Tools

Tips

  • Apply several coats of wood stain to the wooden components
  • Fill the holes with wood filler and smooth the surface

Time

  • One Day

Related





Building a bar

Building the frame of the base

Building the frame of the base



The first step of the woodworking project is to build the base of the bar. As you can easily notice in the plans, we recommend you to build the components out of 1×3 lumber. Cut the components at the right size and lock them together with galvanized screws. Drill pocket holes at both ends of the short slats and secure them to the rim components using 1 1/4″ screws.

Smart Tip: Make sure the corners are right-angled.



Building the base

Building the base



Cut a piece of 3/4″ plywood at the right size and attach it over the frame. Drill pilot holes and secure it into place with 1 1/4″ galvanized screws. Make sure there are no gaps between the plywood and the frame and check if the edges are flush.



Fitting the bar walls

Fitting the bar walls



Continue the project by attaching the sides and the partitions of the bar to the base. Drill pocket holes at both ends, take accurate measurements and lock the plywood pieces to the base with galvanized screws. Add waterproof glue to the joints and make sure the corners are right-angled.



Attaching the front face

Attaching the front face



Add the face of the bar to the frame, as described in the diagram. Drill pocket holes along the side edges of the vertical partitions and secure them to the face with 1 1/4″ screws. Align the components with great care and make sure the edges are flush. Add glue to enhance the rigidity of the joints.



Fitting the top supports

Fitting the top supports



Fit 1×3 supports to the top of the frame, as shown in the image. Drill pocket holes at both ends of the supports, align them with great care and lock them to the frame with 1 1/4″ screws. Add waterproof glue to the joints and remove the excess with a damp cloth.



Fitting the shelves

Fitting the shelves



Cut two pieces of 3/4″ plywood at the dimensions highlighted in the diagram and secure them to the frame with 1 1/4″ screws, after drilling pocket holes along the side edges. Take accurate measurements, otherwise the shelves won’t be horizontal.



Attaching the bar top

Attaching the bar top



Building the countertop for the bar is a straight forward process. In order to enhance the look of the project, we recommend you to glue two pieces of 3/4″ plywood together. Clamp the pieces of plywood tightly, in order to create a proper bong between them. Lay the countertop on a level surface and center the frame of the bar as in the image. Insert the 1 1/4″ screws through the pilot holes drilled in the frame of the bar, into the countertop.



Building the bottle supports

Building the bottle supports



The next step of the project is to build the bottle supports. Cut the four pieces of 1×8 lumber at 19″ and use a 4″ hole saw to make the round cuts. Afterwards, split the slats into half along the cut line and smooth the edges with sandpaper.



Building the wine rack

Building the wine rack



Secure the supports to two pieces of 1×8 lumber. Drill pocket holes to both sides of the supports and secure them to the supports.



Fitting the wine supports

Fitting the wine supports



Fit the wine bottle supports into place and secure them to the partitions with 1 1/4″ screws. You could adjust the height at which you place the supports in order to get a professional result.



Fitting the trims

Fitting the trims



One of the last steps of the project is to attach the trims to the base and to the top of the bar. Cut both ends of the trims at 45 degrees and secure them to the framing with 1 1/4″ finishing nails. Work with attention and add glue to enhance the bond of the trims to the bar.



Free bar plans

Free bar plans



Free bar plans1 diy

Free bar plans diy



Last but not least, we recommend you to take care of the finishing touches. Fill the holes with wood filler and let it to dry out for several hours. Afterwards, smooth the wooden surface with fine-grit sandpaper and vacuum the residues.

Smart Tip: Apply several coats of stain or paint to the wooden components, if you want to protect them from decay and to enhance the look of the bar. If you want to get this plan as a PDF file, please take a look over the GET PDF PLANS button bellow. Thank you for the support!





Thank you for reading our project about free bar plans and we recommend you to check out the rest of the projects. Don’t forget to share our projects with your friends and LIKE us, by using the social media widgets. SUBSCRIBE if you want to be the first that gets our latest articles.
