8×16 Gambrel Shed – Free DIY Plans

This step by step diy woodworking project is about 8×16 gambrel shed plans. I have designed this narrow barn shed so you can store your garden tools and other items with style. This shed is sturdy and it features a 4′ wide door for easy access. Remember that you need to read the local building codes before starting the construction, so you comply with the legal requirements. See my other shed plans HERE.

We recommend you to invest in the best materials you could afford. Therefore, you should buy weather-resistant lumber, such as pine or cedar. Always take accurate measurements before adjusting the size of the components at the proper size. Drill pilot holes trough the components before inserting the wood screws, to prevent the wood from splitting.





Made from this plan

Add-Image





8×16 Gambrel Shed – Free DIY Plans

Building a 8x14 gambrel shed

Building a 8×16 gambrel shed



Materials

  • A – 3 pieces of 4×4 lumber – 192″ long SKIDS
  • B – 2 pieces of 2×6 lumber – 192″ long, 13 pieces – 93″ long FLOOR FRAME
  • C – 2 pieces of 3/4″ plywood – 48″x96″ long, 2 pieces – 48″x48″ long FLOOR
  • D – 2 pieces of 2×4 lumber – 192″ long, 15 pieces – 61″ long 2xSIDE WALL
  • E – 1 piece of 2×4 lumber – 20 1/2″ long, 1 piece – 19″ long, 3 pieces – 61″ long 2xFRONT WALL
  • F – 2 pieces of 2×4 lumber – 89″ long, 7 pieces – 61″ long BACK WALL

Tools

Time

  • One Week





Make sure you follow me on YOUTUBE and Facebook to be the first that gets our latest plans and for some other exclusive content. Also, follow me on Pinterest to get many ideas for your backyard from all the internet! See how you can Support Me with no extra costs to you.





How to build a 8×16 barn shed

Building the floor frame

Building the floor frame

The first step of the project is to build the frame for the 8×14 storage shed. As you can easily notice in the diagram, you need to cut the components at the right dimensions. Use a saw to cut the components from 2×6 lumber. Align the edges with attention and make sure the corners are square. Drill pilot holes through the rim joists and insert 3 1/2″ screws into the perpendicular components.

Fitting the skids

Fitting the skids

Fit the 4×4 skids under the floor frame. Align the skids with attention and use screws to lock the frame to the skids. The skids will lift the frame from the ground and therefore, they will protect it from moisture.

Fitting the floor sheets

Fitting the floor sheets

Fit 3/4″ plywood sheets to the floor frame. Align the edges flush and insert 1 5/8″ screws, every 8″ along the frame. Leave no gaps between the components.

Building the side wall frames

Building the side wall frames

Building the side wall frames is a straight forward process, as you need to cut all the components at the right dimensions and then lock them together tightly with 3 1/2″ screws or framing nails. Place the studs every 16″ on center and check if the corners are square. Place double studs at both ends of the components for a professional result.

Front wall frame

Front wall frame

Next, you need to build the front wall frames. Cut all the components from 2×4 lumber, as shown in the diagram. Drill pilot holes through the plates and insert 3 1/2″ screws into the studs. Place the studs equally spaced. You can adjust the size of the door opening to suit your needs.

Back wall frame

Back wall frame

Next, build the back wall for the backyard storage shed. Cut the components at the dimensions shown in the diagram and then use the same techniques described above to assemble the wall together tightly.

Assembling the shed frame

Assembling the shed frame

Fit the wall frames to the floor of the shed. Align the edges with attention and plumb the wall frames with a spirit level. Drill pilot holes through the bottom plates and insert 3 1/2″ screws. In addition, you need to lock the adjacent wall together tightly with 2 1/2″ screws. Make sure the corners are square and align the edges with attention.

How to build a 8x16 gambrel shed

How to build a 8×16 gambrel shed

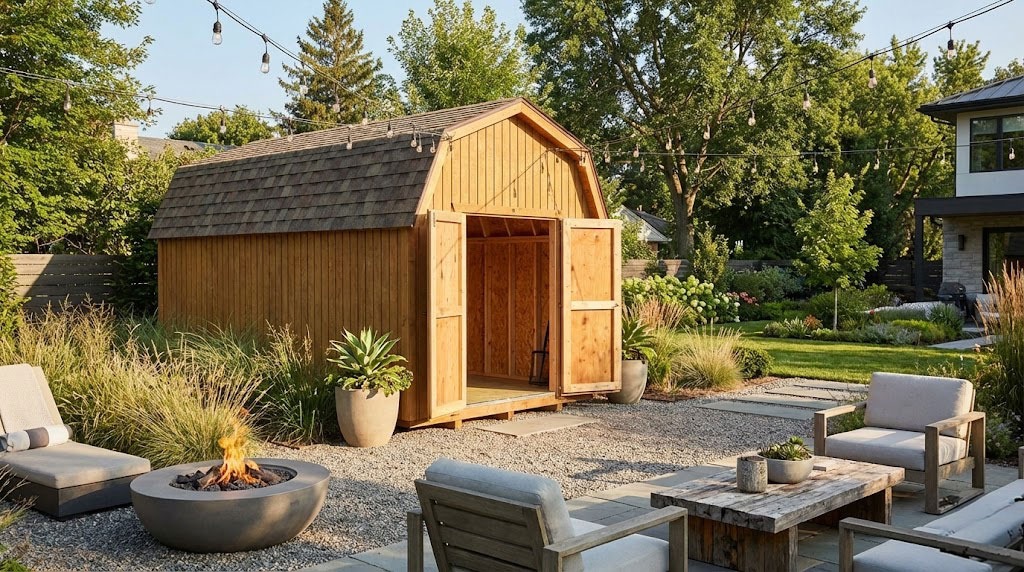

This gambrel shed is compact and it features a large front door. If you want to see other shed designs, take a look over my other projects HERE.

8x16 Gambrel Shed Plans - Back view

8×16 Gambrel Shed Plans – Back view

This is a small storage shed, making it ideal for a small backyard. Don’t forget to take a look over PART 2 and PART 3 of the project so you learn how to build the roof and the front door for the storage shed. If you like my project, don’t forget to SHARE it on Facebook and Pinterest.

Smart Tip: Don’t forget to share your projects with me, as I love seeing what you guys are working on. Send me the pics HERE. In addition, take a look over the rest of my DIY projects HERE.





Thank you for reading our project about 8×16 barn shed plans and I recommend you to check out the rest of the projects. Don’t forget to LIKE and SHARE our projects with your friends, by using the social media widgets. SUBSCRIBE to be the first that gets our latest projects.
