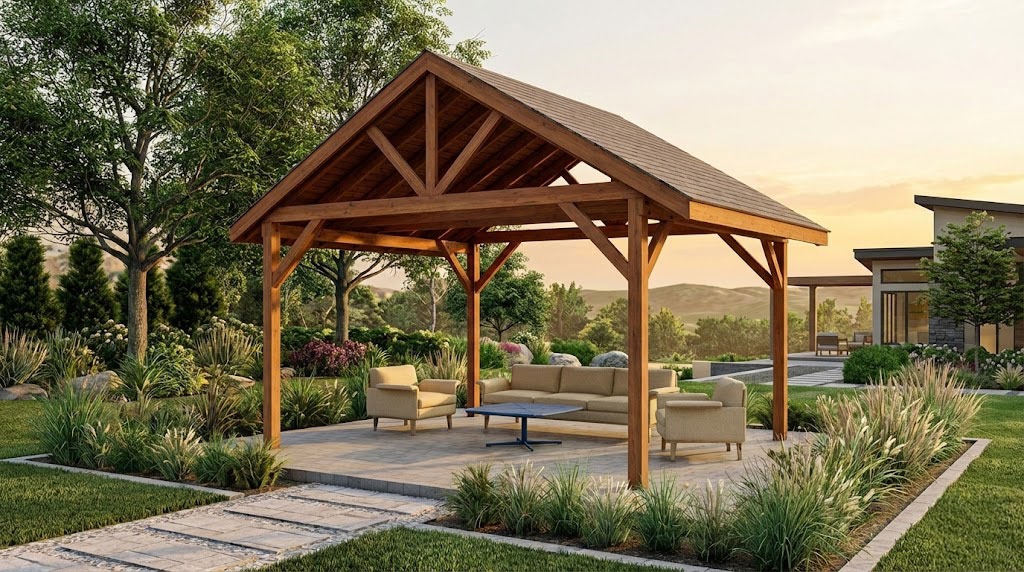

How to build a picnic shelter

This step by step woodworking project is about how to build a picnic shelter. If you want to create a leisure area in your backyard, you should consider building a simple pavilion. This project features instructions for building a wide shelter made from common materials. Follow the building codes and hire a professional contractor if you don’t have the right skills to undertake the project on your own.

A 14×12 wooden shelter for your backyard is a construction that can be built by any woodworking amateur in a few weeks, but there are many techniques you have to master before undertaking the project. However, building a gazebo, a pergola or even a backyard kitchen with an attached roof could be projects that are more suitable for your needs. It’s you job to decide what design does best for you.

We recommend you to invest in the best materials you could afford. Therefore, you should buy weather-resistant lumber, such as pressure-treated lumber, pine or cedar. Always take accurate measurements before adjusting the size of the components at the proper size. Drill pilot holes trough the components before inserting the wood screws, to prevent the wood from splitting. See all my Premium Plans in the Shop.



Made from this plan

Add-Image





Building a picnic shelter

Building a picnic shelter



Materials

  • A – 4 pieces of 4×4 lumber – 132″ long (36″ in the ground) POSTS
  • B – 4 pieces of 2×6 – 144″ long SUPPORT BEAMS
  • C – 8 pieces of 2×6 – 171″ long BOTTOM RAFTERS
  • E – 2 pieces of 2×4 lumber – 44 1/4″ long, 2 pieces – 24″ long, 1 piece of 2×6 lumber – 144″ long TOP RIDGE
  • F – 16 pieces of 2×6 lumber – 119 1/4″ long RAFTERS

Tools

Tips

  • Add trims to the pavilion
  • Secure the roofing slats to the structure with galvanized screws

Time

  • One Week

Related





How to build a picnic shelter

Laying out the pavilion

Laying out the pavilion



First of all, you need to layout the posts for the picnic shelter in a professional manner. Use batter boards and string to layout everything with attention. Make sure the diagonal are equal and apply the 3-4-5 rule to each corner, to check if they are square.



Building the posts

Building the posts



Use 4×4 lumber for the posts. You need to set the posts for about 2-3′ in the ground, so make sure you add this to the length of the posts, before making the cuts. You can adjust the height of the picnic shelter to suit your needs.



Fitting the posts

Fitting the posts



After marking the location of the posts, you need to dig 2-3′ deep holes in the ground, using a post hole digger. Install tube forms and fit the posts into place, making sure they are perfectly plumb. Secure the 4×4 posts with braces before filling the forms with concrete.

Smart Tip: Alternatively, you could use posts anchors. You need to secure the metal anchors into concrete, as to lock the wooden posts into place properly. Align everything with attention and with great care.



Fitting the support beams

Fitting the support beams



Afterwards, you need to install the 2×6 support beams to the top of the posts, on both sides of the picnic shelter. Clamp the beams to the posts and use a spirit level to check if the beams are horizontal. Use a carpentry square to check if all the corners are right-angled. Drill pilot holes through the beams and through the posts. Insert 7″ carriage bolts and lock the components together tightly.



Bottom rafters

Bottom rafters



Build the bottom rafters from 2×6 lumber. Cut both ends of the rafters at 30 degrees. Smooth the cut edges with sandpaper.



Fitting the bottom rafters

Fitting the bottom rafters



Place the support rafters equally-spaced (24″ on center) and leave no gaps between the components. Use metal connectors to lock the rafters to the support beams. In addition, drill pilot holes through the rafters and insert 3 1/2″ screws into the support beams.



Ridge support

Ridge support



In order to enhance the rigidity of the picnic shelter, we recommend you to fit 2×4 supports to both the front and the back of the shelter.



Ridge support

Ridge support



Mark the cut lines to the slats and get the job done with a saw. Smooth the edges with fine-grit sandpaper and remove the residues with a damp cloth.



Fitting the top ridge supports

Fitting the top ridge supports



Center the supports to the end bottom rafters and plumb them with a spirit level. Make sure the corners are square before locking the supports into place with metal plates. In addition, drill pilot holes and insert 3 1/2″ screws to lock the supports into place.



Fitting the top ridge

Fitting the top ridge



Fit the supports to the end bottom rafters. Make sure the corners are square and plumb the support with a spirit level. Align the edges with attention and use metal connectors to lock the supports into place. Attach the 2×6 top ridge to the supports. Make sure the corners are square.



Fitting the top ridge braces

Fitting the top ridge braces



Build some braces for the top ridge from 2×4 lumber. Cut both ends of the braces at 45 degrees. Fit the braces to the top ridge and lock them into place using 3 1/2″ screws, after drilling pilot holes.



Building the rafters

Building the rafters



Next, you need to build the rafters for the shelter from 2×6 lumber. Cut both ends of the slats at 60 degrees.



Fitting the rafters

Fitting the rafters



Place the rafters to the support beams, making sure they are equally-spaced. Use metal connectors to secure the rafters to the support beams and 3 1/2″ screws to lock the opposite ends to the top ridge. Drill pilot holes before inserting the screws, to prevent the wood from splitting.



Wooden picnic shelter plans

Wooden picnic shelter plans



Make sure you check out PART 2 of the project, to learn everything you need to know about taking care of the finishing touches (roofing, braces, trims).



Building a 14x12 outdoor pavilion

Building a 14×12 outdoor pavilion



The picnic shelter has a nice design and can match the style of any backyard. Moreover, you can adjust the size of the pavilion, if you want more space for leisure.



How to build a picnic shelter

How to build a picnic shelter



Smart Tip: Apply a few coats of stain or exterior paint to the components, in order to protect them from decay and water damage. Make sure you choose quality components taht suit your needs and tastes. Check out PART 2 of the outdoor project.
