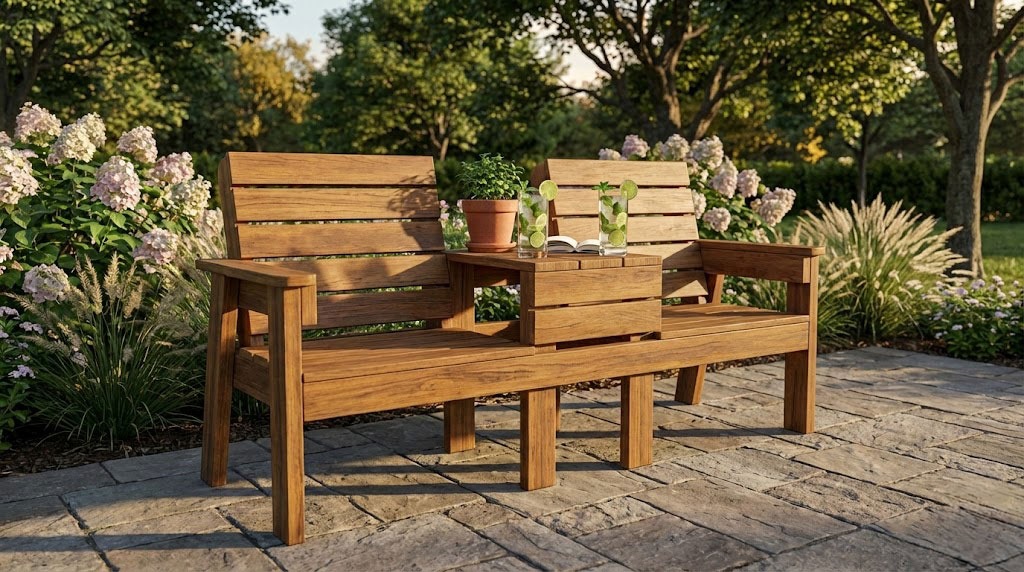

Large Outdoor Double Chair Bench Plans

This step by step woodworking project is about large outdoor double chair bench plans. This wood project is ideal for your backyard, if you want to have both a comfy chair and a very useful table. You can easily adjust the dimensions and the design of the project, so you match it with the style of the rest of your backyard furniture. See my other DIY projects HERE.

We recommend you to invest in the best materials you could afford. Therefore, you should buy weather-resistant lumber, such as pine or cedar. Always take accurate measurements before adjusting the size of the components at the proper size. Drill pilot holes trough the components before inserting the wood screws, to prevent the wood from splitting.





Made from this plan

DIY-Double-Chair-Sreater-with-Table  Add-Image





Large Outdoor Double Chair Bench Plans

Building an outdoor double chair bench

Building an outdoor double chair bench

Materials

  • A – 2 pieces of 2×4 lumber – 68″ long, 6 pieces – 18″ long FRAME
  • B – 2 pieces of 2×4 lumber – 23″ long, 2 pieces – 24 3/4″ long LEGS
  • C – 4 pieces of 2×4 lumber – 24″ long BACKREST SUPPORTS
  • D – 2 pieces of 2×4 lumber – 21 3/4″ long, 2 pieces of 1×4 lumber – 22 1/4″ long ARMRESTS
  • E – 10 pieces of 1×4 lumber – 24″ long BACKREST
  • F – 8 pieces of 1×4 lumber – 25 1/2″ long SEAT
  • G – 4 pieces of 2×4 lumber – 23″ long TABLE LEGS
  • H – 3 pieces of 1×6 lumber – 21 3/4″ long, 3 pieces of 2×4 lumber – 17″ long TABLE

Tools

Time

  • One Day





How to build a double chair bench

Building the seat frame

Building the seat frame

Cut the components for the seat frame from 2×4 lumber. Drill pocket holes at both ends of the 18″ long components and insert 2 1/2″ screws into the perpendicular components. Make sure the corners are square and leave no gaps between the components.

Building the legs

Building the legs

Build the legs for the double chair bench from 2×4 lumber. Cut both ends of the back legs at 75 degrees and smooth the edges with sandpaper.

Assembling the sides

Assembling the sides

Attach the 2×4 armrest support to the top of the legs, as shown in the diagram. Drill pilot holes and insert 2 1/2″ screws for rigid joints. Add waterproof glue to the joints for a professional result.

Assembling the bench frame

Assembling the bench frame

Attach the sides to the seat of the bench. Align everything making sure the corners are square. Drill pilot holes through the seat frame and insert 2 1/2″ screws into the legs.

Backrest supports

Backrest supports

Build the backrest supports from 2×4 lumber. Round the exposed corner with a jigsaw.

Fitting the backrest supports

Fitting the backrest supports

Attach the backrest supports to the seat frame, as shown in the diagram. Drill pilot holes through the backrest supports and insert 2 1/2″ screws into the seat frame.

Backrest slats

Backrest slats

Attach 1×4 slats to the backrest supports. Leave even gaps between the slats by placing 1/2″ pieces of plywood between them. Drill pilot holes and use 1 5/8″ screws.

Fitting the seat slats

Fitting the seat slats

Attach the 1×4 slats to the seat of the bench. Lock them into place with 1 5/8″ screws, after drilling pilot holes.

Fitting the armrests

Fitting the armrests

Build the armrests from 1×4 lumber. Round the front end of the armrests with a jigsaw. Smooth the edges with sandpaper for a professional result. Secure the armrests into place with 1 5/8″ screws, after drilling pilot holes.

Fitting the table legs

Fitting the table legs

Attach 2×4 legs to the middle of the double chair bench. Make sure the corners are square and plumb them. Drill pilot holes and insert 2 1/2″ screws into the seat frame.

Table front slats

Table front slats

Attach 2×4 slats to the front and back of the double chair bench. Drill pilot holes at both ends of the slats and secure them into place with 2 1/2″ screws.

Fitting the table slats

Fitting the table slats

Attach 1×6 slats to the table. Drill pilot holes and insert 1 5/8″ screws.

Double chair bench with table plans

Double chair bench with table plans

Fill the holes with wood putty and let it harden for a few hours. Smooth the surface with 120-220 grit sandpaper and apply a few coats of paint and stain.

Large Double chair bench with table plans

Large Double chair bench with table plans

This is a nice project for backyard patio. This is a large bench split into two chairs and it also features a middle table. If you like my project, don’t forget to SHARE it on Facebook and Pinterest.

Smart Tip: Don’t forget to share your projects with me, as I love seeing what you guys are working on. Send me the pics HERE. In addition, take a look over the rest of my DIY projects HERE.





Thank you for reading our project about outdoor double chair table plans and I recommend you to check out the rest of the projects. Don’t forget to LIKE and SHARE our projects with your friends, by using the social media widgets. SUBSCRIBE to be the first that gets our latest projects.
