Wooden cart plans

This step by step diy woodworking project is about wooden cart plans. If you want to learn more about building a diy cart, we recommend you to pay attention to the instructions described in the article. There are so many cart plans and designs to choose from, so make sure you take a close look over the rest of the related woodworking projects that are featured on our website.

Before starting the actual construction project, we recommend you to plan everything, as to save money and to keep the costs under control. Adjust the size and the design of the cart to suit your needs. In addition, we recommend you to invest in high-quality materials, such as pine, redwood or cedar, as they have a nice finish and are highly durable, especially in a humid environment.

If you don’t have a rich expertise in woodworking field, you should ask a friend to give you a hand with the project. There are many things that you could go wrong, so make sure you plan everything and invest in quality materials. Select the lumber with attention, making sure the components are perfectly straight and in a very good condition. Use a carpentry square to check if the corners are right-angled.



Made from this plan

Add-Image

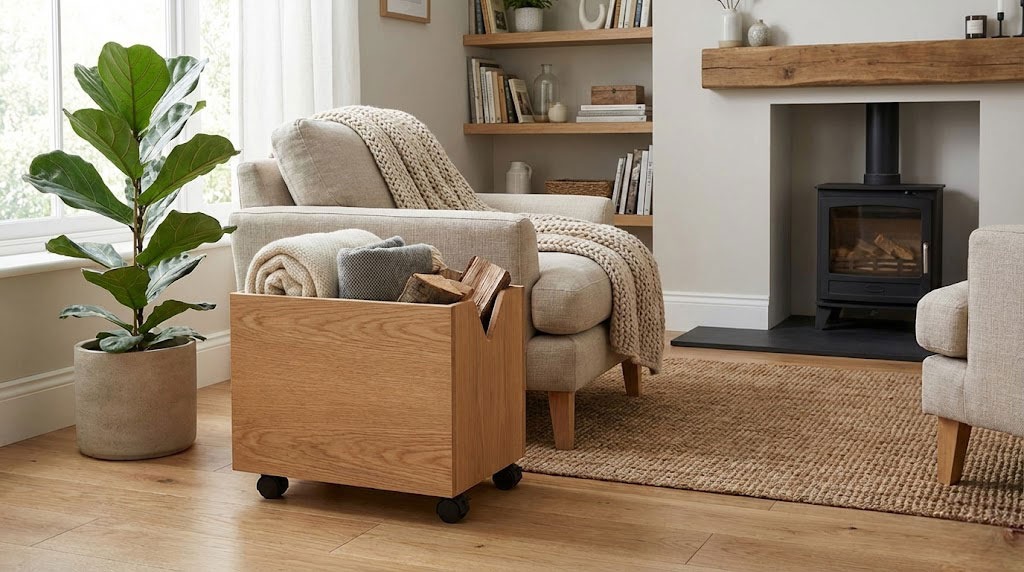

Wooden cart plans

Building a cart

Building a cart



Materials

  • A – 2 pieces of 3/4″ plywood – 10″x18″ long ENDS
  • B – 2 pieces of 3/4″ plywood – 20″x18″” long FACES
  • C – 1 pieces of 3/4″ plywood – 10″x18 1/2″ long BOTTOM
  • D – 4 pieces of caster wheels – 2″ long WHEELS



Tools

  • Safety gloves, glasses
  • Miter saw, jigsaw
  • Chalk line, tape measure, spirit level, carpentry pencil
  • Drill machinery and drill bits



Tips

  • Apply several coats of wood stain to the wooden components
  • Fill the holes with wood filler and smooth the surface



Time

  • One Day



Related





Building a cart

Building the ends of the cart

Building the ends of the cart



The first step of the woodworking project is to build the ends of the cart. Cut the 3/4″ plywood piece at the right size and make a decorative cut to the top. Mark the cut lines with a pencil and get the job done with a circular saw.



Fitting the side components

Fitting the side components



Attach the sides to the structure, as described in the plans. Drill pocket holes along the edges of the end components and inert 1 1/4″ screws into the sides. Add waterproof glue to the edges and make sure the corners are right-angled.



Attaching the bottom

Attaching the bottom



Drill pocket holes along the edges of the bottom component and secure it to the frame of the cart. Work with attention and make sure there is a 1/2″ gap from the top to the bottom component. Add glue to the joints and remove the excess using a damp cloth.



Fitting the caster wheels

Fitting the caster wheels



Attach the caster wheels to the bottom of the cart, as described in the image. Make sure the caster wheels are secured into place properly.



Wooden cart plans

Wooden cart plans



Last but not least, we recommend you to take care of the finishing touches. Fill the holes with wood filler and let it to dry out for several hours. Afterwards, smooth the wooden surface with fine-grit sandpaper and vacuum the residues.

Smart Tip: Apply several coats of stain or paint to the wooden components, if you want to protect them from decay and to enhance the look of the wooden trolley cart.





Thank you for reading our project about wooden cart plans and we recommend you to check out the rest of the projects. Don’t forget to SHARE our projects with your friends and LIKE us, by using the social media widgets. SUBSCRIBE if you want to be the first that gets our latest articles.
