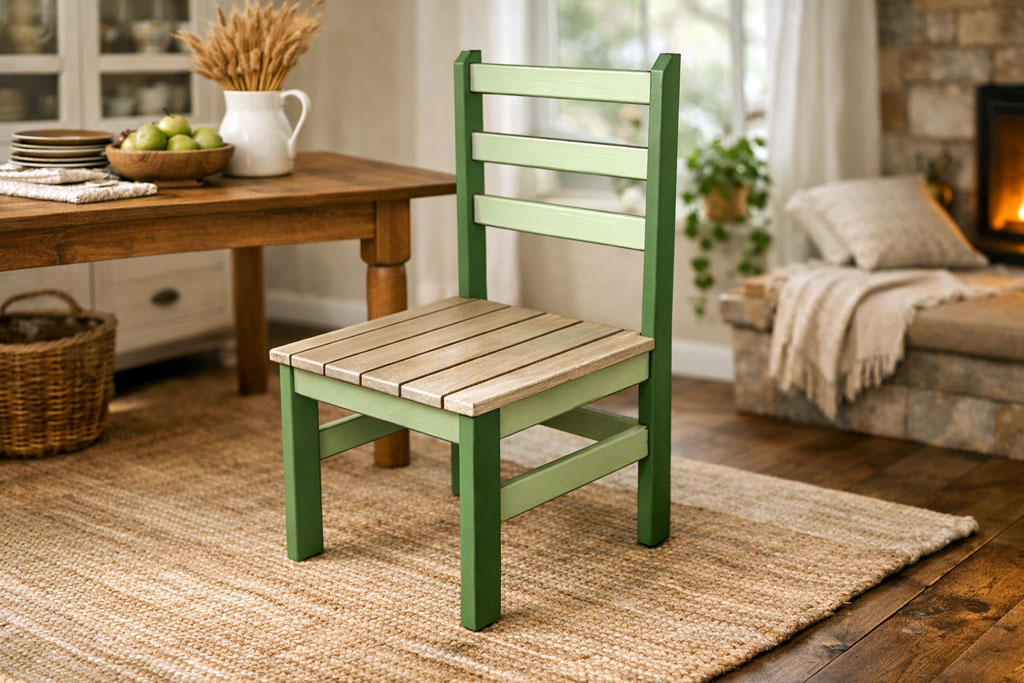

Farm Chair Plans

This step by step diy woodworking project is about farm chair plans. If you want to find out more about how to build a farmhouse chair, we recommend you to pay attention to the instructions and diagrams described in the article. Work with attention and don’t forget to take a look over the rest of the related plans, as there might be some that suit your needs and add value to your life.

Plan everything with attention and ask a skilled friend to give you a hand, if you don’t have an extensive expertise in the field. From our experience, it is important to invest in high quality materials, such as pine, cedar or redwood, as the money spent will pay off in the long run. These materials are both durable and have a very beautiful finish, that is why they make a great choice.

Make sure the wooden components are perfectly straight and are cut at the right size before locking them together with galvanized screws and waterproof glue. Drill pocket holes at both ends of the components before inserting the screws, to prevent the wood from splitting. Check if the corners are right-angled after each step of the project. Plumb the legs with a spirit level and secure the components tightly. See all my Premium Plans in the Shop.



Made from this plan

Add-Image



Farm Chair Plans

Building a farm chair

Building a farm chair



Materials

  • A – 2 pieces of 1×3 lumber – 16″ long, 2 pieces – 40″ long LEGS
  • B – 4 pieces of 1×3 lumber – 18″ long, FRAME
  • C – 6 pieces of 1×3 lumber – 18 3/4″ long SUPPORTS
  • D – 5 pieces of 1×4 lumber – 22″ long, 2 pieces of 1×2 lumber – 22″ long SEAT

Tools

Tips

  • Apply several coats of wood stain to the wooden components
  • Fill the holes with wood filler and smooth the surface

Time

  • One Day

Related





Building a farmhouse chair

Building the sides of the chair

Building the sides of the chair



The first step of the project is to build the sides of the farm chair. As you can easily notice, you should assemble the sides by using 1×3 lumber. Cut the components at the right size and lock them together with screws and waterproof glue. Make sure the corners are right-angled before inserting the screws. You could adjust the height of the front legs to suit your needs.



Fitting the front and back supports

Fitting the front and back supports



Continue the project by locking the two sides of the chair together. Therefore, we recommend you to cut the supports at the right size and to drill pocket holes at both ends. Fit the supports into place, align them with great care and insert the 1 1/4″ galvanized screws into the legs. Check if the corners are right-angled and make sure the supports are horizontal.



Attaching the backrest

Attaching the backrest



Building the backrest of the farm chair is a straight-forward process, as you just need to fit the 1×3 slats between the back legs and to lock them into place with galvanized screws. Add waterproof glue to the joints, in order to make them rigid. Work with attention and fit the slats equally-spaced.



Attaching the seat slats

Attaching the seat slats



One of the last steps of the project is to attach the 1×4 slats to the frame of the farm chair. Cut the components at the right size and attach them into place starting with the center of the seat. Drill pocket holes through the supports and insert the galvanized screws into the slats. Make sure there are no gaps between the slats and add waterproof glue to enhance the rigidity of the seat.



Farm chair plans

Farm chair plans



Last but not least, we recommend you to take care of the finishing touches. Fill the holes with wood filler and let it to dry out for several hours. Afterwards, smooth the wooden surface with fine-grit sandpaper and vacuum the residues.

Smart Tip: Apply several coats of stain or paint to the wooden components, if you want to protect them from decay and to enhance the look of the farm chair. If you want to get this plan as a PDF file, please take a look over the GET PDF PLANS button bellow. Thank you for the support!





Thank you for reading our project about farm chair plans and we recommend you to check out the rest of the projects. Don’t forget to share our projects with your friends and LIKE us, by using the social media widgets, if you want to be the first that gets our latest articles.
