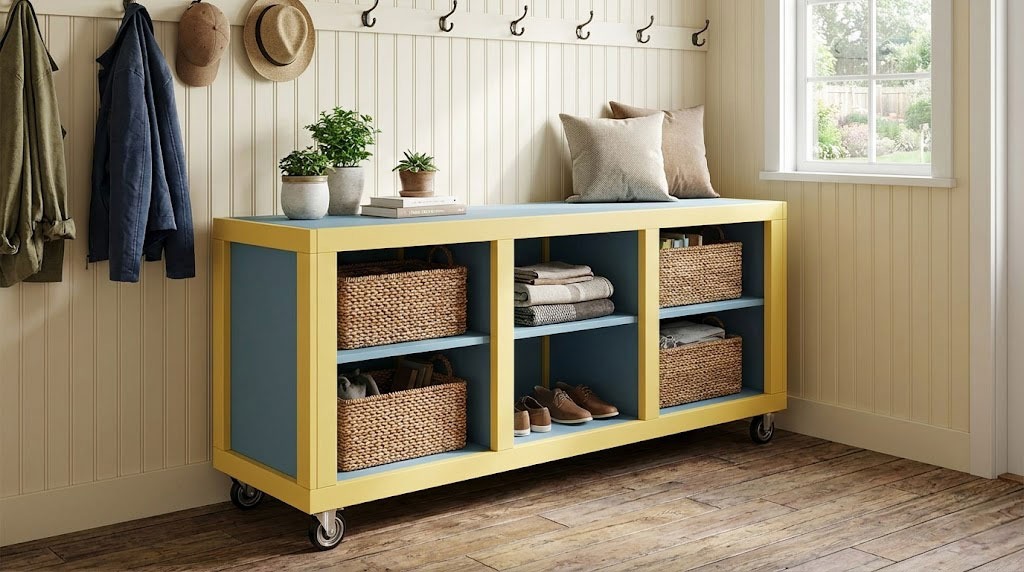

Cubby bench plans

by Jack Sander
0 comments 395 views 4 minutes read



This step by step diy woodworking project is about cubby bench plans. If you want to create a beautiful bench with a neat design, we recommend you to pay attention to the instructions described in the project. Moreover, you should adjust the dimensions of the cubby bench according to your needs and tastes. Make sure the wooden components are perfectly straight and in a good visual condition.

There are so many plans and designs to choose from when building a bench for your garden, so make sure you plan everything from the very beginning and select a project that really suits your tastes and budget. Work with attention and adjust the size and the look of the bench according to your needs and tastes. If you don’t have experience in the field, it would be a good idea to take a look over the rest of the indoor projects.

On the other hand, we recommend you to invest in the best materials you can afford, especially if you want to get the job done as a professional and to use the cubby bench for many years in a row. Use pine, cedar or redwood, as these materials are both durable and have a nice finish. Add waterproof glue to the joints, in order to create a rigid structure and use a pocket hole system. See all my Premium Plans in the Shop.



Made from this plan

Add-Image



Cubby bench plans

Building a cubby bench

Building a cubby bench



Materials

  • A – 1 pieces of 1×12 lumber – 48″ long, 1 piece – 46 1/2″ long FRAME
  • B – 2 pieces of 1×12 – 16 1/2″ long, 2 pieces – 15″ long FRAME
  • C – 4 pieces of 1×2 lumber – 48″ long, 8 pieces – 14 1/4″ long TRIMS
  • D – 4 pieces of 2-3″ caster wheels WHEELS

  • 2 pieces of 1×12 lumber – 8 ft
  • 4 pieces of 1×2 lumber – 8 ft
  • caster wheels
  • 2 1/2″ screws
  • 1 1/4″ screws
  • glue, stain
  • wood filler

Tools

  • Safety gloves, glasses
  • Miter saw, jigsaw
  • Chalk line, tape measure, spirit level, carpentry pencil
  • Drill machinery and drill bits

Tips

  • Apply several coats of wood stain to the wooden components
  • Fill the holes with wood filler and smooth the surface

Time

  • One Day

Related





Building a cubby bench

Building the frame of the bench

Building the frame of the bench



The first step of the woodworking project is to build the frame of the cubby bench. As you can see in the image, we recommend you to cut the components at the right dimension and lock them together with pocket screws.

Smart Tip: Drill pocket holes at Both ends of the bottom component and at the top of the side elements. Add waterproof glue to the joints and check if the corners are right-angled by using a carpentry square.



Fitting the splitting walls

Fitting the splitting walls



The next step of the project is to fit the splitting walls and secure them to the frame with pocket screws. These components will not only enhance the rigidity of the frame, but it will also better organize the storage space. Make sure you place the walls equally-spaced.



Attaching the trims

Attaching the trims



One of the last steps of the project is to attach the 1×2 trims to both faces of the cubby bench. After cutting the trims at the right size, we recommend you to lock them into place with finishing nails and waterproof glue.



Fitting the caster wheels

Fitting the caster wheels



If you want to move the cubby bench easily, we recommend you to attach caster wheels to the bottom of the frame. Center the caster wheels to the corners of the bottom frame and secure it into place with galvanized screws.



Cubby bench plans

Cubby bench plans



Cubby bench plans

Cubby bench plans

Last but not least, we recommend you to take care of the finishing touches. Fill the holes with wood filler and let it to dry out for several hours. Afterwards, smooth the wooden surface with fine-grit sandpaper and vacuum the residues. Round the edges with fine-grit sandpaper.

Smart Tip: Apply several coats of stain or paint to the wooden components, if you want to protect them from decay and to enhance the look of the cubby bench.





Thank you for reading our project about how to build a cubby bench and we recommend you to check out the rest of the projects. Don’t forget to share our projects with your friends and LIKE us, by using the social media widgets. SUBSCRIBE if you want to be the first that gets our latest articles.
